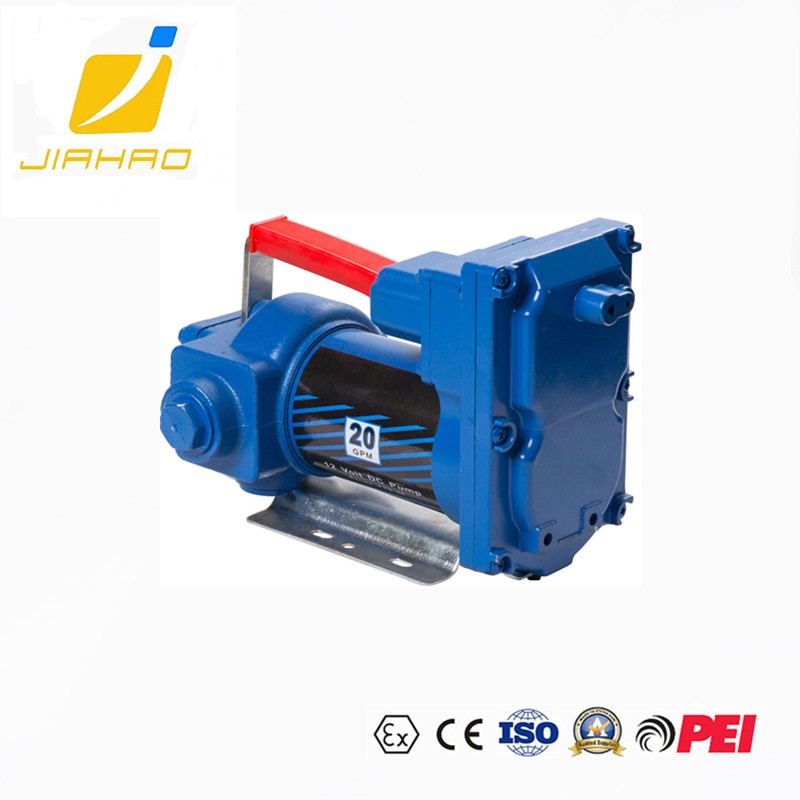

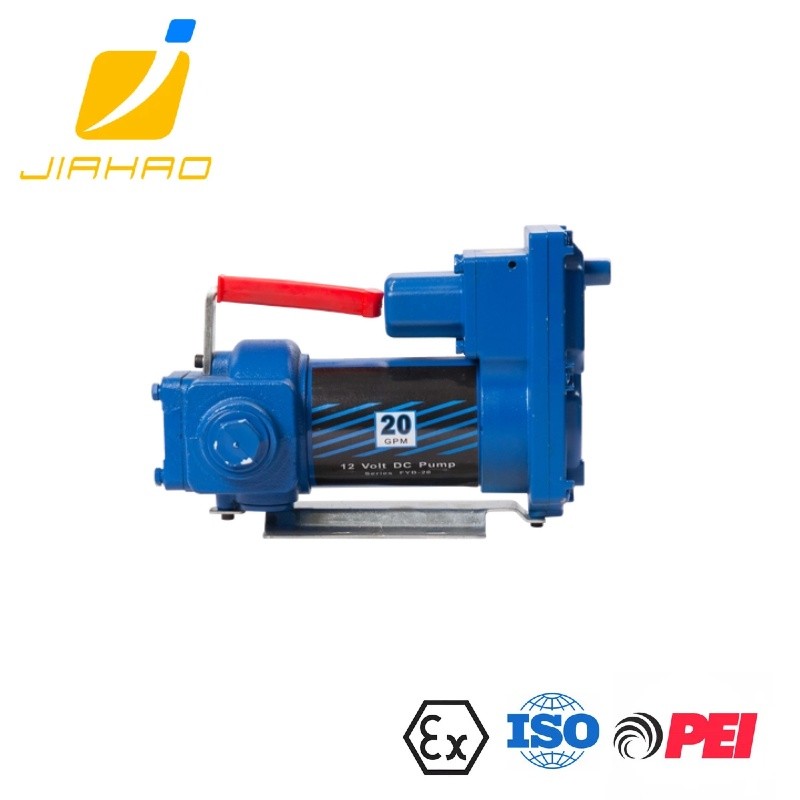

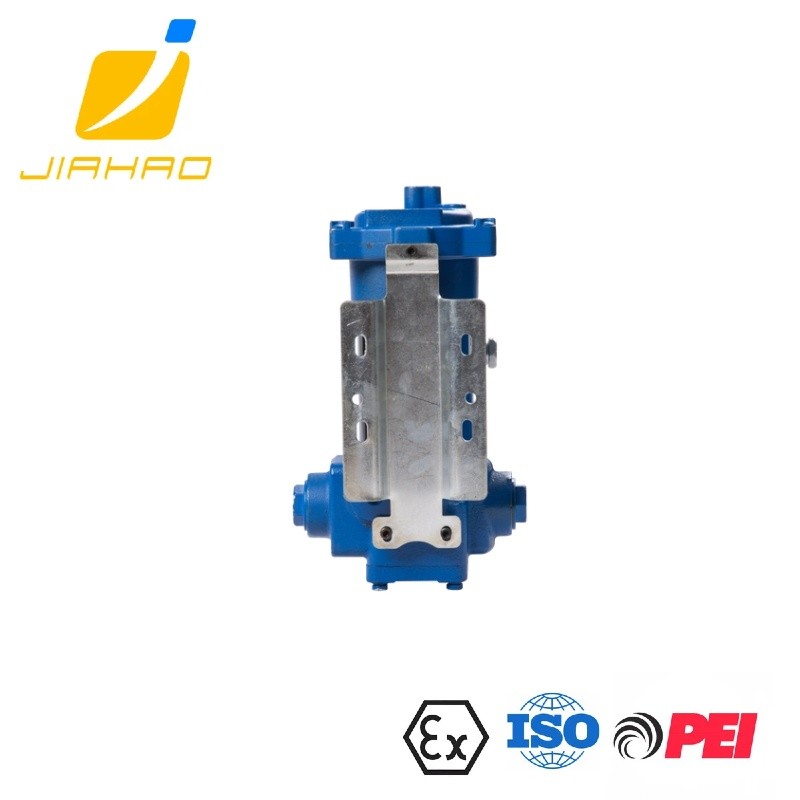

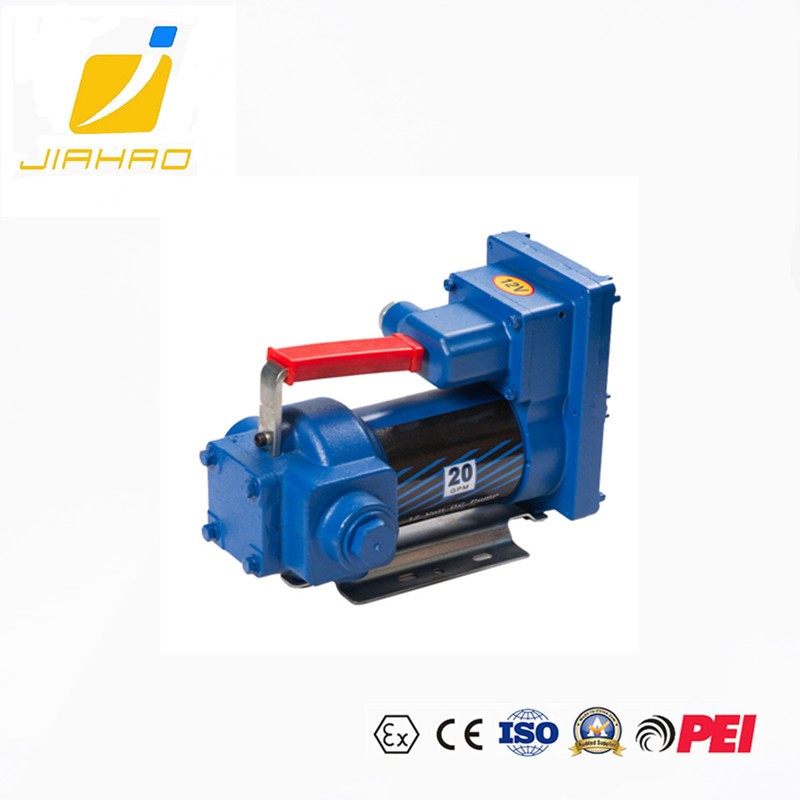

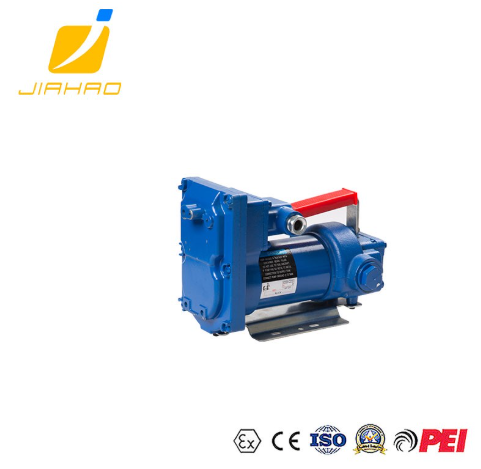

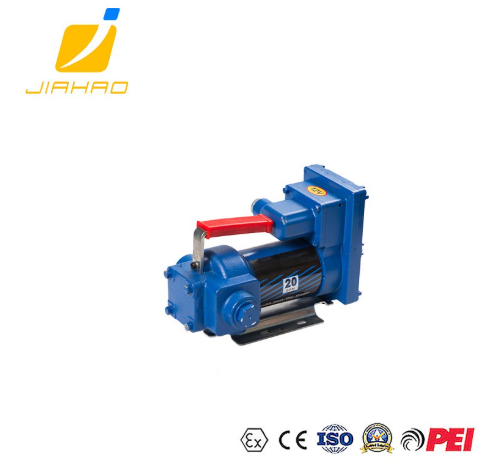

JH-DYB-50/75 VERTICAL EXPLOSION-PROOF ELECTRIC GASOLINE DELIVERY PUMP

Model	DYB50-DC12B	DYB75-DC12B
Body material	Cast Iron	Cast Iron
Max flow rate	15GPM	20GPM
Explosion-proof motor	1/4HP	1/4HP
Voltage	DC12V or DC24V
Inlet	1''NPT	1''NPT
Outlet	3/4''NPT	1''NPT
Threaded tank adapter	2''NPT
Nozzle hanger	Yes

Features&Benefits

• For diesel, gasoline,kerosene,mineral spirits,solvent and heptatne
• Explosion-proof permanent magnet motor with thermal overload protection
• Built-in strainer, bypass valve
• Ball bearing construction,no lubrication required
• 1''diameter,12'hose with static ground wire and 1'' manual nozzle
• Nozzle boot that protects against dirt and contamination
• 2''threaded base for tank openings
• Corrosion-Proof section pipe
• Waterproof and rainproof
• 30-minute duty cycle,not for continuous operation
