JH-ML100 Triple-Stage Vapor Recovery Unit Membrance Seraration

JH-ML100 Triple-Stage Vapor Recovery Unit Membrane Separation——Efficient and Environmental Solution for the Third Stage of Vapor Recovery

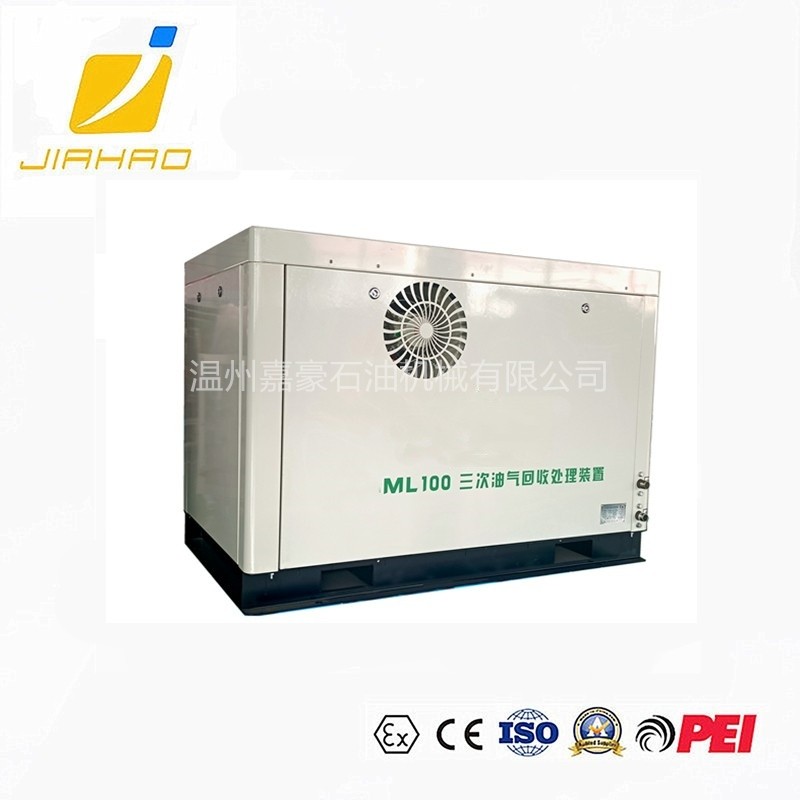

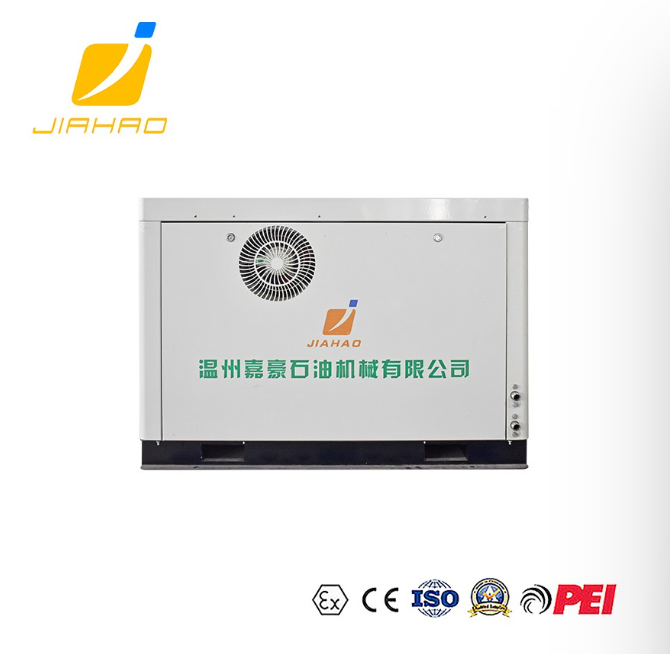

JH-ML100 Triple-Stage Vapor Recovery Unit Membrane Separation is a core equipment designed specifically for the third stage of vapor recovery. It adopts advanced membrane separation technology, focusing on vapor recovery treatment in scenarios such as gas stations and oil depots. With the characteristics of efficient separation, environmental compliance, safety and reliability, it achieves dual optimization of vapor resource recovery and exhaust emission.

Efficient Treatment, Environmental Compliance：With a treatment capacity of 100L/min (6m³/h), it can quickly meet the needs of vapor recovery. The concentration of non - methane total hydrocarbons in exhaust emissions is ≤20g/m³, which strictly meets environmental protection standards and effectively reduces vapor volatilization pollution.

Stable Operation, Wide Adaptability：With a maximum working pressure of 1.0bar and an AC380V/50Hz power supply, it operates stably in a wide temperature range of -25℃~55℃, adapting to outdoor scenarios such as gas stations and oil depots in different climate regions.

Safe and Reliable, Explosion-Proof Design：The explosion-proof mark is Ex d e ia mb pxⅡB T4 Gb, which fully complies with the safety and explosion-proof specifications of the petroleum industry, ensuring operational safety throughout the equipment design and operation process and reducing safety risks in vapor environments.

Easy Installation, Low Consumption and Maintenance：The overall structure is cabinet - type, with an overall dimension of 1460x664x730mm, covering only 1 square meter. The modular design allows it to be transported to the site as a whole, and it can be put into use only by connecting the air inlet and the gasoline return pipeline. It has low power consumption and simple maintenance procedures, reducing daily operating costs.

Technical Features

It adopts a composite process of "compression + air cooling + membrane separation". Gas can be recovered without compression at low temperatures, taking into account safety and energy efficiency. The surface of the shell is sprayed with plastic (light gray), which has corrosion resistance and oxidation resistance, does not change color after long-term use, and is suitable for complex outdoor environments.

Whether it is vapor recovery in daily operation of gas stations or environmental control in oil depot transfer links, JH-ML100 Triple-Stage Vapor Recovery Unit Membrane Separation, with its advantages of "efficient recovery, up-to-standard emission, safety and stability, and convenient operation and maintenance", has become an ideal equipment for the third stage of vapor recovery, helping the petroleum industry achieve a balance between environmental protection and economic benefits.

JH-ML100: high-efficiency recovery, ultra-low emissions, full explosion-proof—ideal for stage 3 vapor recovery!
