LPG & CNG & OGM

JH-YB50-2 High Efficiency Flameproof Three-Phase Asynchronous Motor Vane Pump

Outlet: 2"/2.5"/3"
Inlet: 2"/2.5"/3"
Power: 380v 50Hz
Flow Rate: 150·300L/min
Speed: 400-640RPM
Horse Power: 2.2kw
Cable Length: 2m
Maximum Pressure: 5Bar
Body Material: Cast iron

  • Product Detail

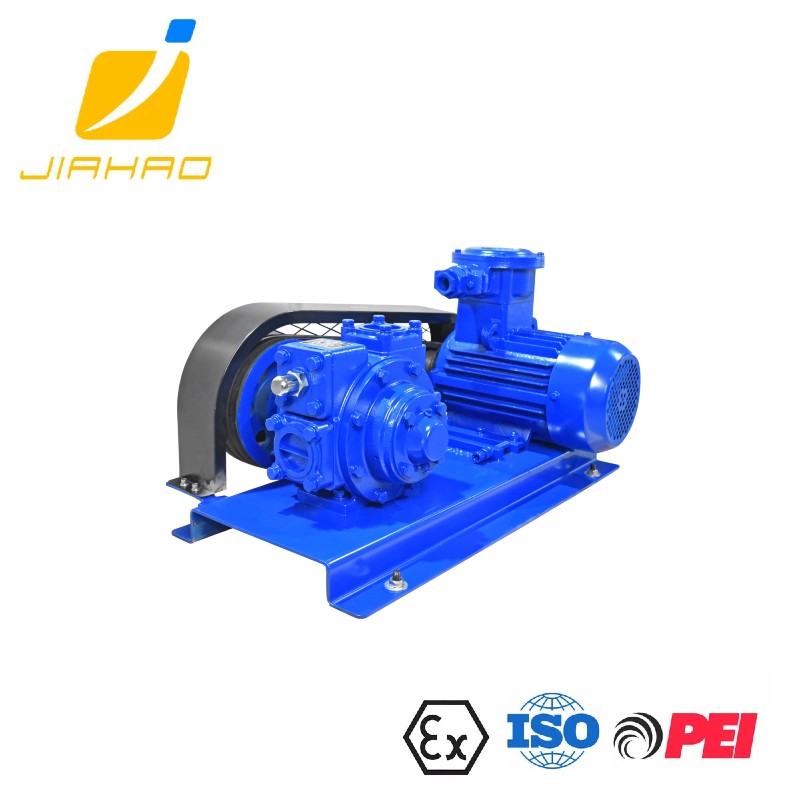

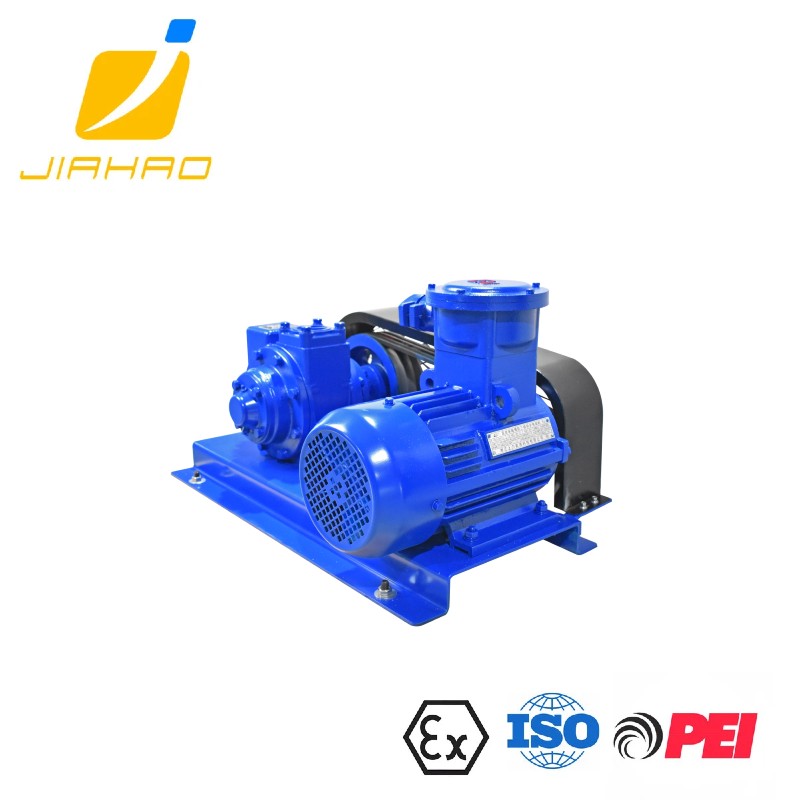

JH-YB50-2 High Efficiency Flameproof Three-Phase Asynchronous Motor Vane Pump



JH-YB50-2 High Efficiency Flameproof Three-Phase Asynchronous Motor Vane Pump


As an explosion-proof fluid transfer equipment developed by Wenzhou Jiahao Petroleum Machinery Co., Ltd. for high-risk environments, the JH-YB50-2 High Efficiency Flameproof Three-Phase Asynchronous Motor Vane Pump, with dual advantages of "explosion-proof safety + efficient conveyance", stands as an ideal power source in flammable and explosive scenarios such as chemical, oil & gas, and metallurgy industries.


  • Flameproof Safety & Compliance: Driven by a three-phase asynchronous motor with integrated flameproof design (compliant with ATEX/IECEX standards), it operates stably in potentially explosive environments, effectively avoiding spark risks, suitable for flammable media like gasoline and solvents.

  • Efficient Conveyance with Wide Adaptability: Covers a flow range of 150-300L/min, maximum pressure of 5Bar, and is compatible with 2"/2.5"/3" inlet/outlet sizes, meeting continuous liquid supply needs of medium and large equipment; 400-640RPM adjustable speed accurately matches different load conditions.

  • Durable, Low-Consumption & Easy Installation: Cast iron pump body resists corrosion and wear; 2.2kw (380V/50Hz) power output balances energy consumption and efficiency; 2-meter cable reserves wiring space, supports multiple connection methods, and features low maintenance costs.

JH-YB50-2 High Efficiency Flameproof Three-Phase Asynchronous Motor Vane Pump,guarantees fluid conveyance in high-risk environments!
