ACCESSORIES SERIES

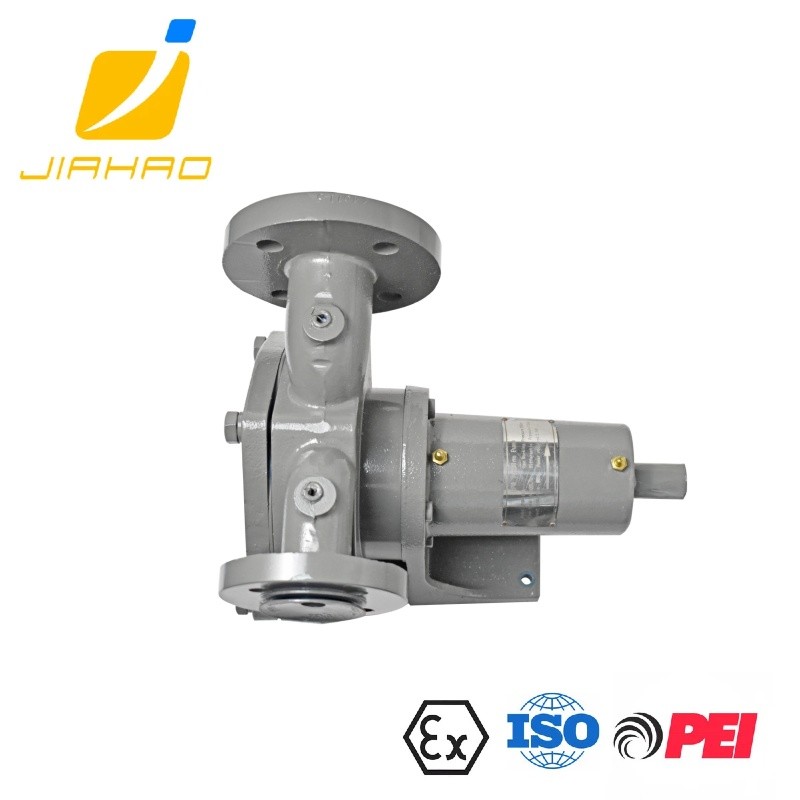

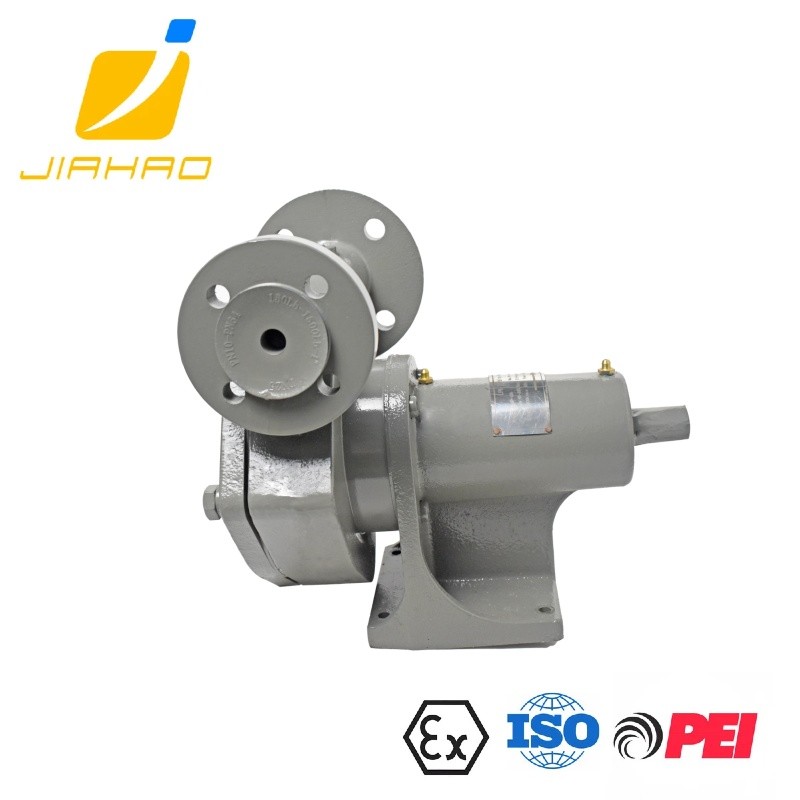

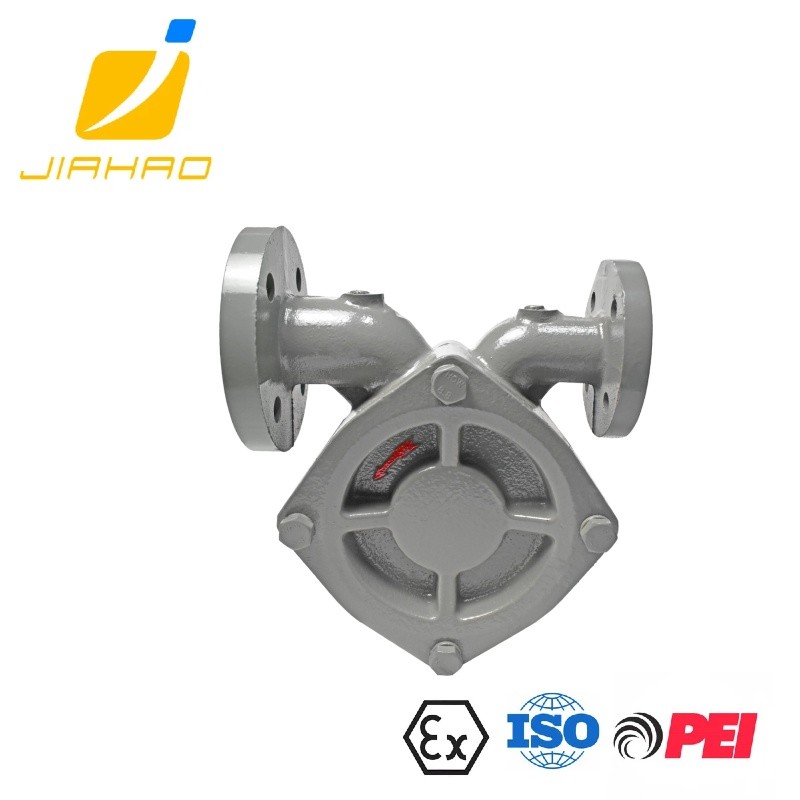

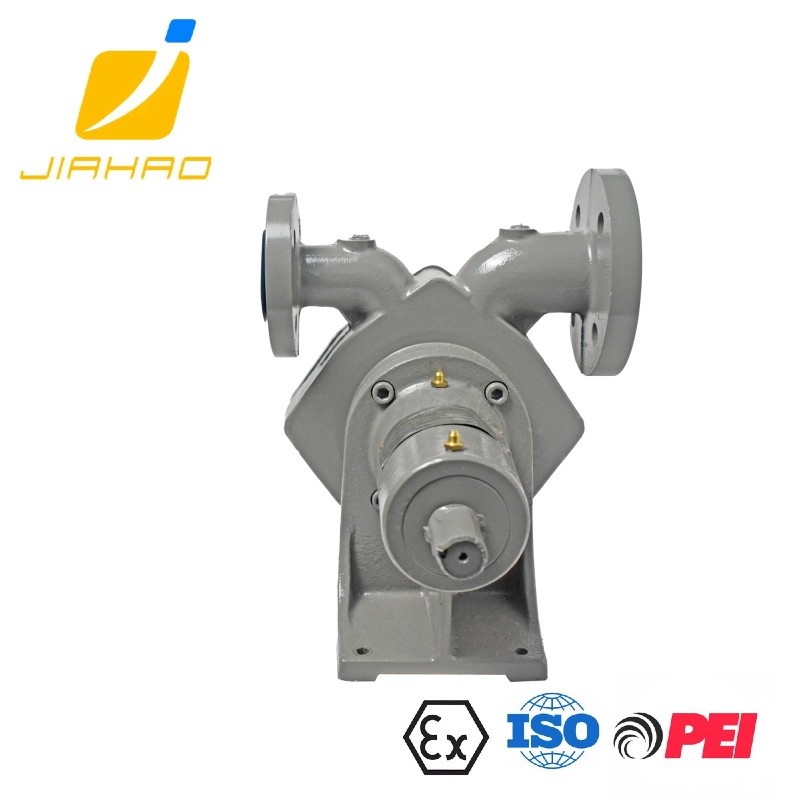

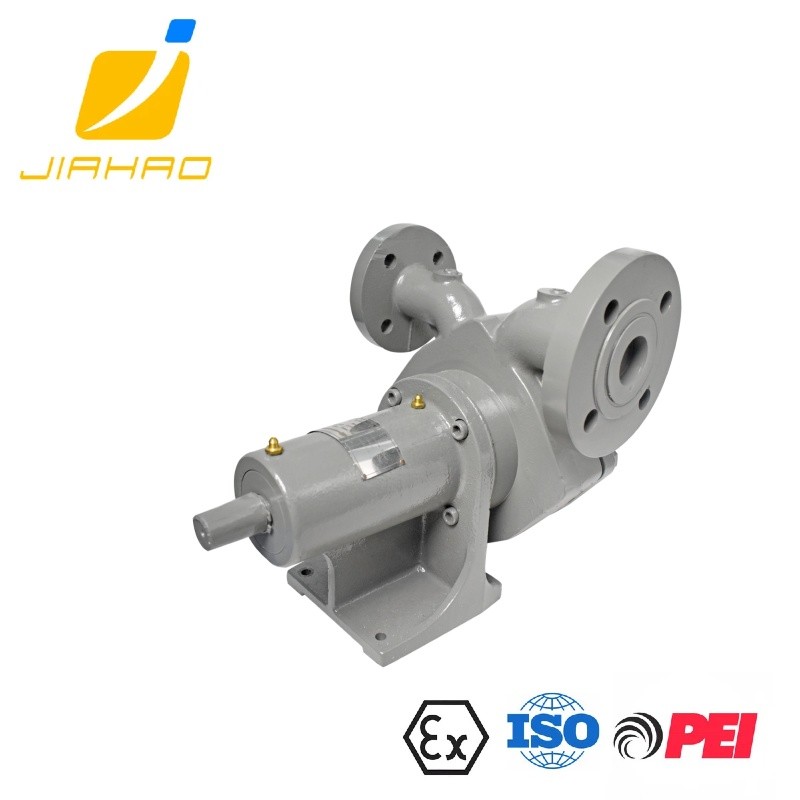

LWB-150 LPG TURBINE PUMP LPG TRANSFER PUMP LPG PUMP HEAD ONLY

Brand Name:JH

INLET:NPT1"

OUTLET:NPT1"

MAX.SPEED:60Hz 3450RPM or 50Hz 2880RPM

TEMPRETURE:-32°~107°

MAX.PRESSURE:27.6BAR

MAX.DIFERENTIAL PRESURE:8.6BAR

POWER OF MOTOR:15KW






  • Product Detail

LWB-150 LPG TURBINE PUMP LPG  TRANSFER PUMPP



High Adaptability:Both inlet and outlet are NPT1", enabling easy connection. It supports dual speeds (60Hz/3450RPM and 50Hz/2880RPM), flexibly matching different power frequencies, suitable for global power environments.
High Pressure Difference Resistance:With a maximum pressure of 27.6BAR and a maximum differential pressure of 17.2BAR, it operates stably in high-pressure difference scenarios (above or underground), ensuring reliable liquefied gas transportation.
Wide Temperature Range:Working temperature spans -32° to 107°, adapting to extreme cold and heat, unaffected by complex working conditions changes.
Strong Power:Equipped with a 15KW motor, it delivers abundant power for efficient liquefied gas conveyance, enhancing work efficiency.
