FLOW METER SERIES

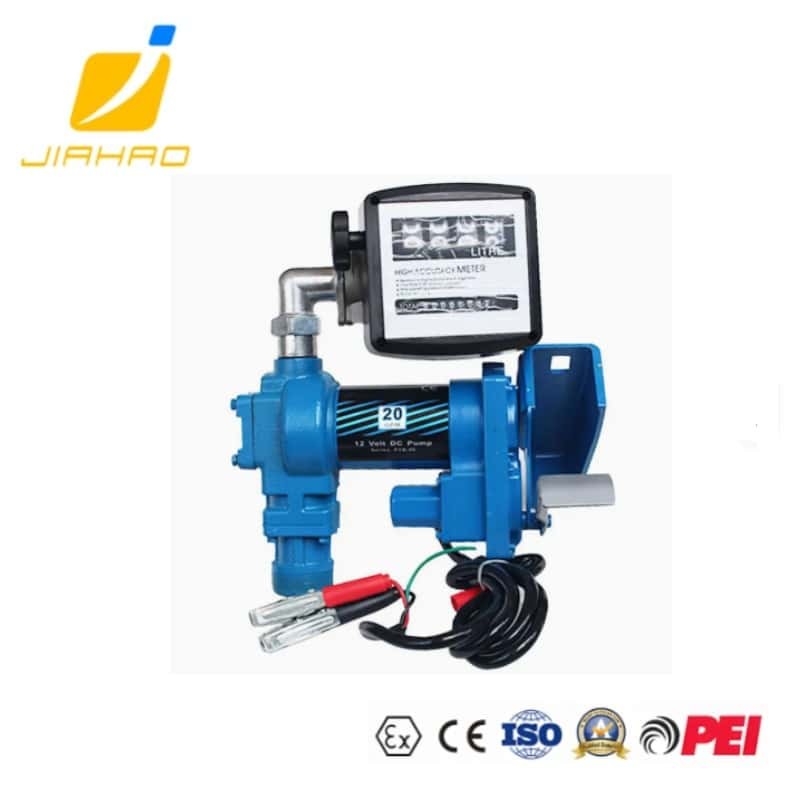

EX-PROOF ELECTRIC GASOLINE PETROL TRANSFER PUMP KIT WITH MECHANICAL FLOW METER

HP 1/4
AMP
22
Watts
264
Flow (GPM)
20
RPM Speed
2600
Max. Total Head
36.96 Ft
Max. Suction Lift
8 Ft
Inlet Port
1"
Outlet Port
1"
Discharge
8 Ft
Duty Cycle
30 Min.
Self-Priming
Yes
Bypass Vave
Yes
Seal Type
Oil Seal
Nozzle Type
Manual
Nose
3/4" X 12ft





  • Product Detail

EX-PROOF ELECTRIC GASOLINE PETROL TRANSFER PUMP KIT WITH MECHANICAL FLOW METER

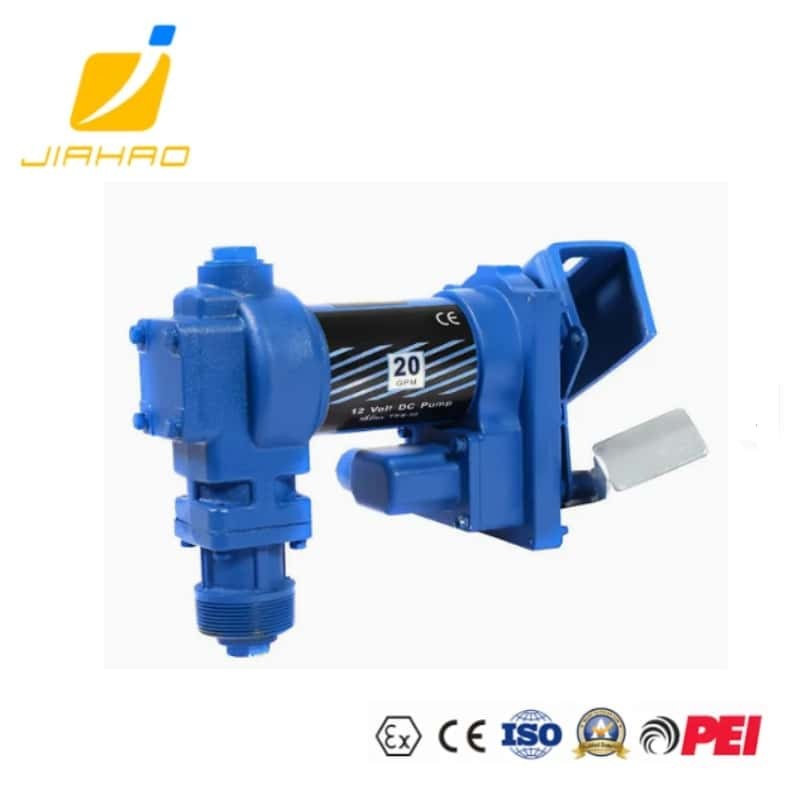

The 12-volt diesel gasoline explosion-proof fuel transfer pump adopts durable cast iron pump housing, stainless steel motor shaft, sturdy and durable. The pump body adopts a rain / waterproof design, easy to use.
The pump is sealed to be explosion proof permanent magnet motor(Ideal for transfer Petrol), and the pump has thermal overload protection.
The gas pump has a built-in filter and a bypass valve. Instrument for outlet hose, with oil gauge. The ball bearing structure does not require lubrication. The compact size makes it easy to install, operate and maintain.
This transfer pump provides safer and more efficient transportation of gasoline, diesel, kerosene, bio-diesel and similar fuels or oils. Suitable for lawn tractors, boats, motor boats, snowmobiles and trimmers, etc.



Features&Benefits

  • Brand New And High Quality
    Ball Bearing Construction, No Lubrication Required
    Thermally Protected And Explosion-Proof
    Cast Iron Material Pump Body
    Manual Nozzle
    2" Male NPT On Bung Adapter
    1" Female NPT On Suction Port
