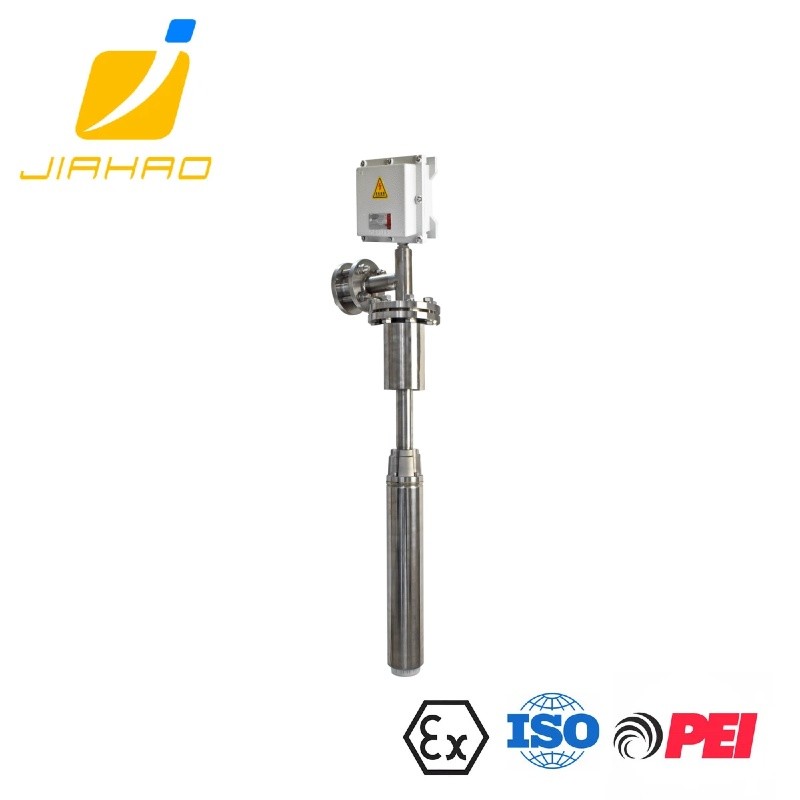

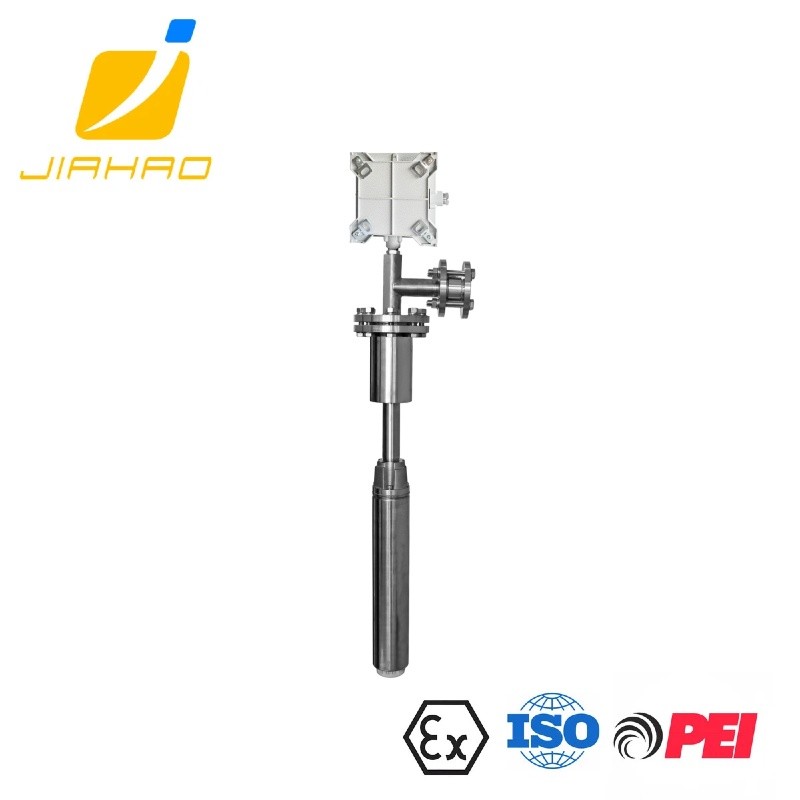

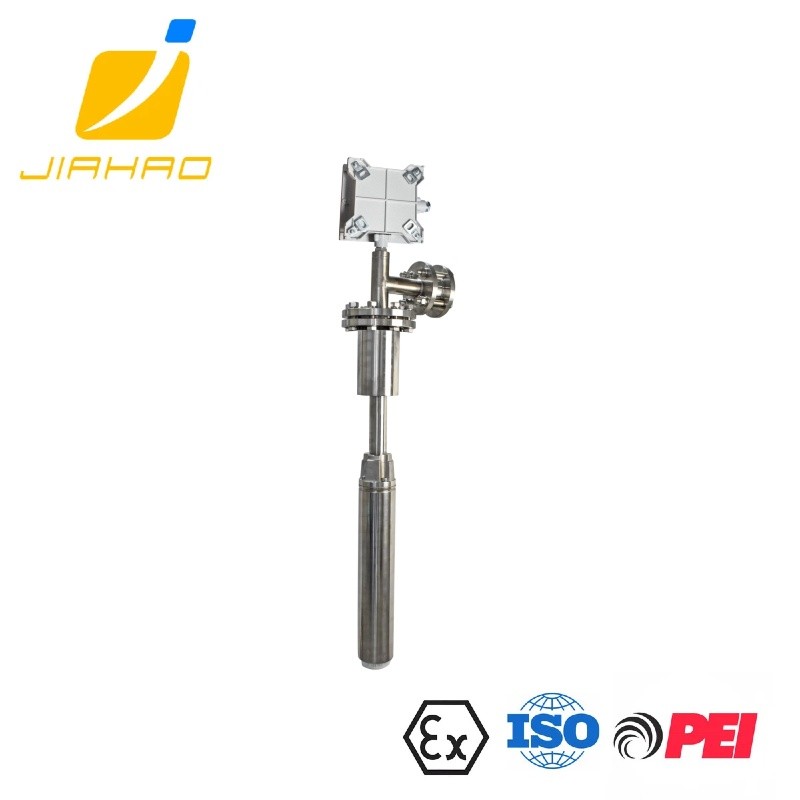

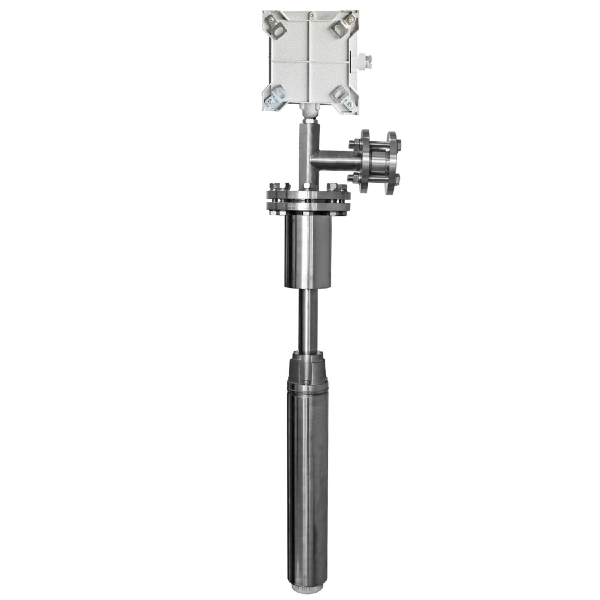

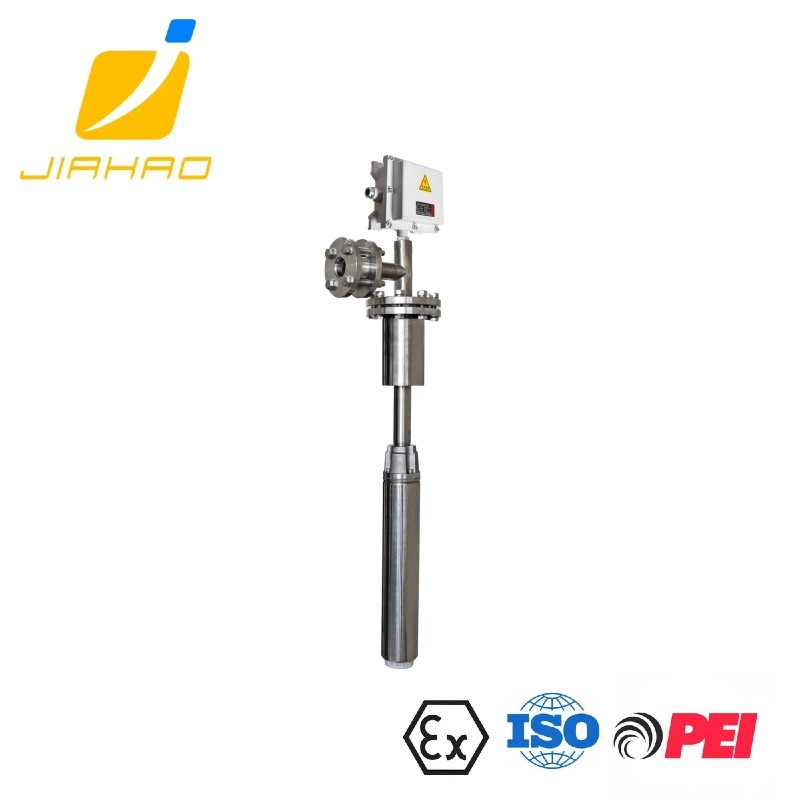

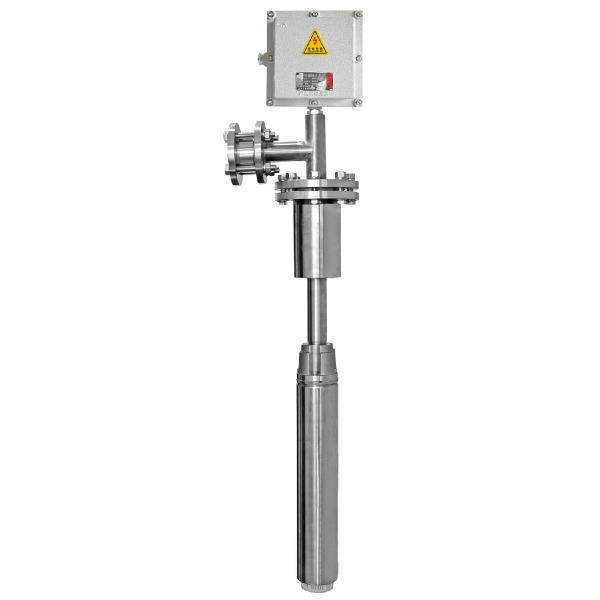

JH-HGB150UR PROFESSIONAL MULTIGUN CHEMIICAL SUBMERSIBLE PUMP

Compact Structure & Easy Maintenance:
Space-efficient compact design for seamless integration into systems.

Simplified installation and maintenance processes, minimizing operational downtime.

Stable Operation & Durability:
Low-noise operation for a quiet working environment.
Stable performance with minimal vibrations, ensuring reliability.

Low failure rate due to robust construction (e.g., heavy-duty materials like stainless steel, as seen in product images), extending service life.

Multi-Nozzle Compatibility:

Capable of supporting multiple fuel nozzles simultaneously, enabling efficient parallel refueling operations.

Media Suitability:
Non-corrosive media: Designed for II A and II B grade fuels/liquid media (non-corrosive environments).
Physical properties:Density ≤ 1.0g/cm³,
Viscosity ≤ 1.2mn²/s,
pH range: 6.5 – 8.5,
ensuring compatibility with a wide range of industrial fluids.

Rated Flow Rate	300L/min
Capacitance	450V 25μF
Voltage	220V/50Hz
Applicable Fuel Nozzle Efficiency	4~5
Environment Temperature	-40℃～60℃
Relative Humidity	30%~40%
Atmospheric Pressure	80KPa~110KPa

Ideal for industries requiring stable, low-maintenance fluid transfer systems (e.g., petrochemical, refueling stations, general industrial liquid handling), where media meets specified density, viscosity, and pH criteria.
