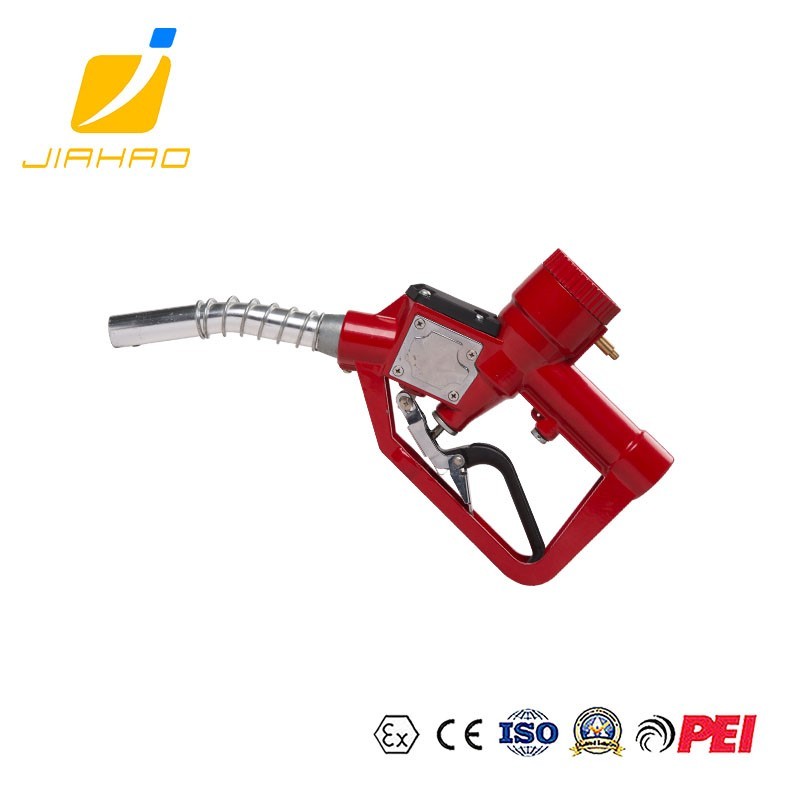

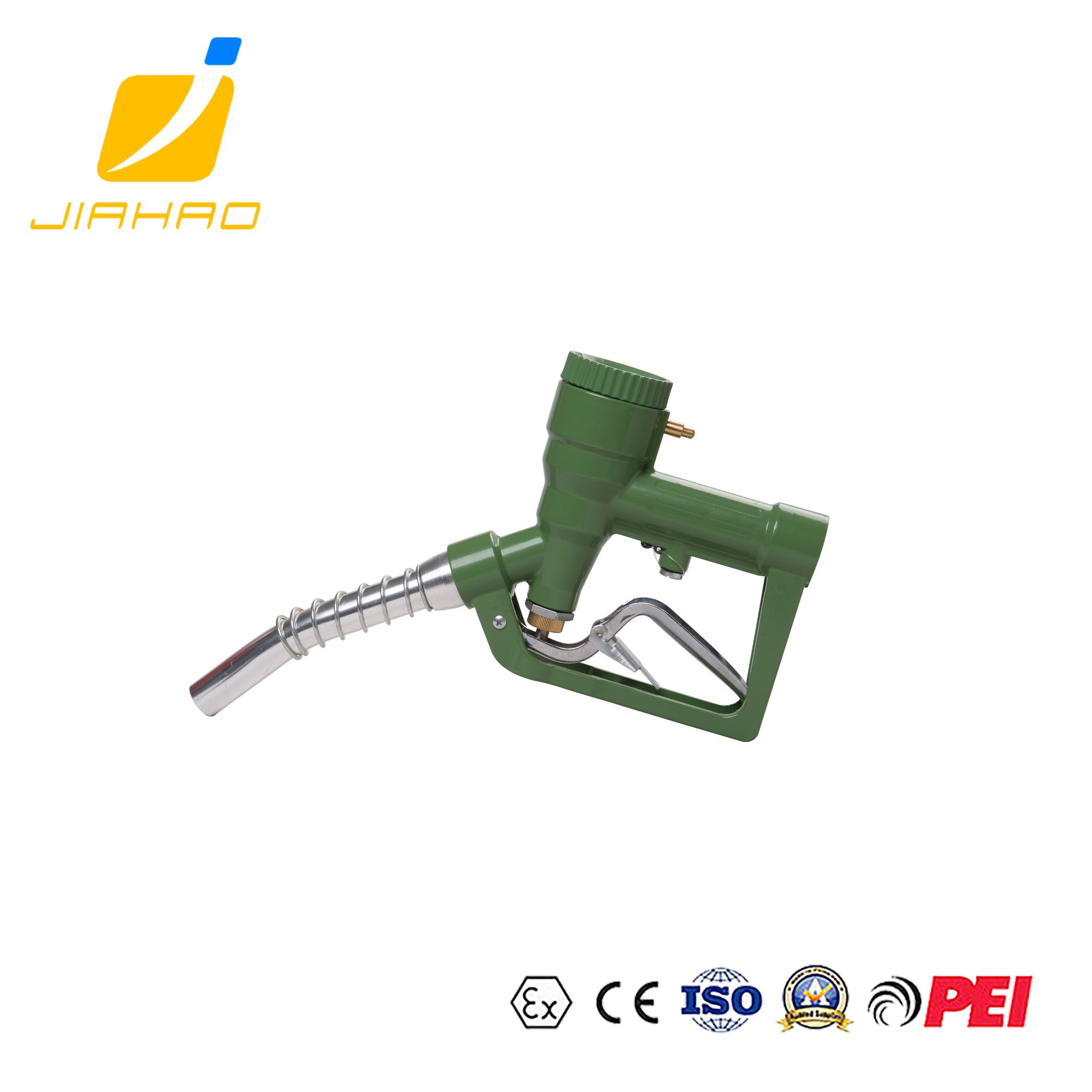

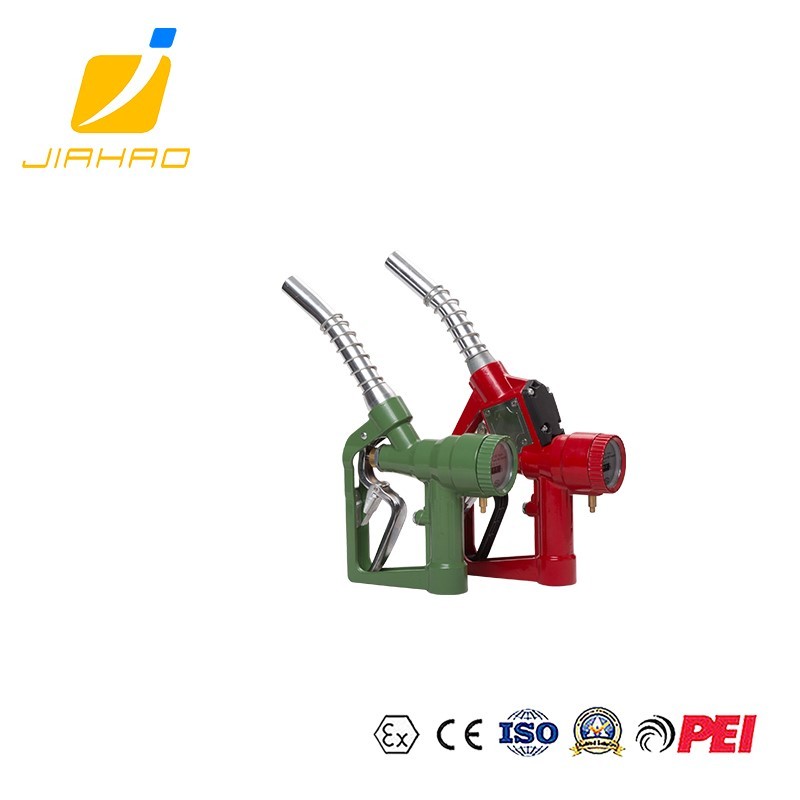

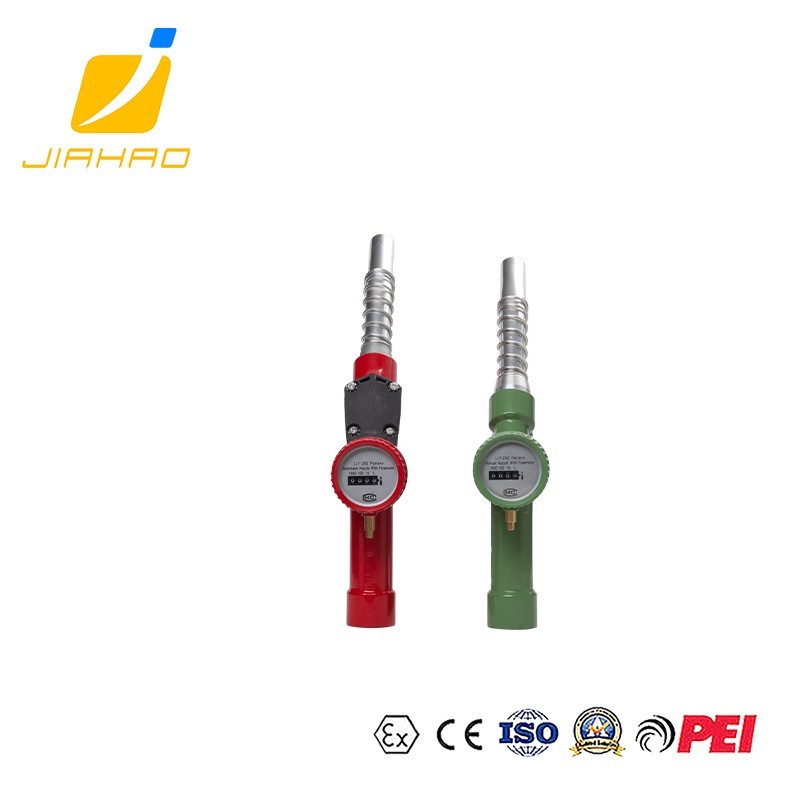

JH-F17 Aluminum Mechanical Meter Self-Shutoff Fuel Dispenser

JH-F17 Aluminum Mechanical Meter Self-Shutoff Fuel Dispenser: The "Reliable Metering Officer" for Traditional Filling Scenarios

As a core equipment developed by Wenzhou Jiahao Petroleum Machinery Co., Ltd. for basic filling scenarios, the JH-F17 Aluminum Mechanical Meter Self-Shutoff Fuel Dispenser stands as the "reliable metering officer" in traditional filling scenarios such as gas stations and warehouses, thanks to the stability of mechanical metering and the safety of self-shutoff function.

Stable & Precise Mechanical Metering: Adopts a propeller-type metering structure with ±1% accuracy, covering 25-60L/min flow range to meet the filling needs of small and medium-sized vehicles. The rated flow of 35L/min adapts to daily filling rhythm, and the mechanical counting method is free from electronic interference, maintaining stable metering performance even in complex environments.

Automatic Protection for Safety & Convenience: Equipped with a self-shutoff device that instantly cuts off the oil path when the tank liquid level touches the nozzle to prevent overflow. With a working pressure of 0.15-0.3Mpa, it adapts to the pressure of conventional fuel dispenser systems. Cooperating with brass sealing components, it has excellent oil resistance and reduces leakage risks.

Lightweight, Durable & Easy to Operate: The main body is made of high-strength aluminum alloy, balancing lightweight and corrosion resistance, with a net weight of 14kg for easy handling. The 25mm standard outlet is suitable for most vehicle tank calibers; the ergonomic handle design reduces fatigue during long-term operation, improving filling efficiency.

Flexible Adaptation & Efficient Deployment: Supports BSP/NPT 1" or 1.2" inlet threads, easily connecting to mainstream fuel dispenser pipelines without complex modifications. Packed 10 pieces per carton (510×320×420mm) with a gross weight of 15kg, it is convenient for transportation and storage, quickly integrating into existing filling systems in gas stations, logistics parks, etc.

JH-F17 Aluminum Mechanical Meter Self-Shutoff Fuel Dispenser,maks every filling precise and controllable.
