FLOW METER SERIES

JH-OGMB-25 STAINLESS STEEL FLOW METER-100L/MIN

Inlet&Outlet BSP/NPT/BSPT  1''
Material Stainless steel (SUS 304)

Working voltage DC 5~24V

Flow range 10~100L/min

Max speed 2000r/min

Max Working Pressure 0.8MPa

Accuracy ±0.5%

Repeatablity ±0.2%

Pulse 0.0156L/pulse
  • Product Detail

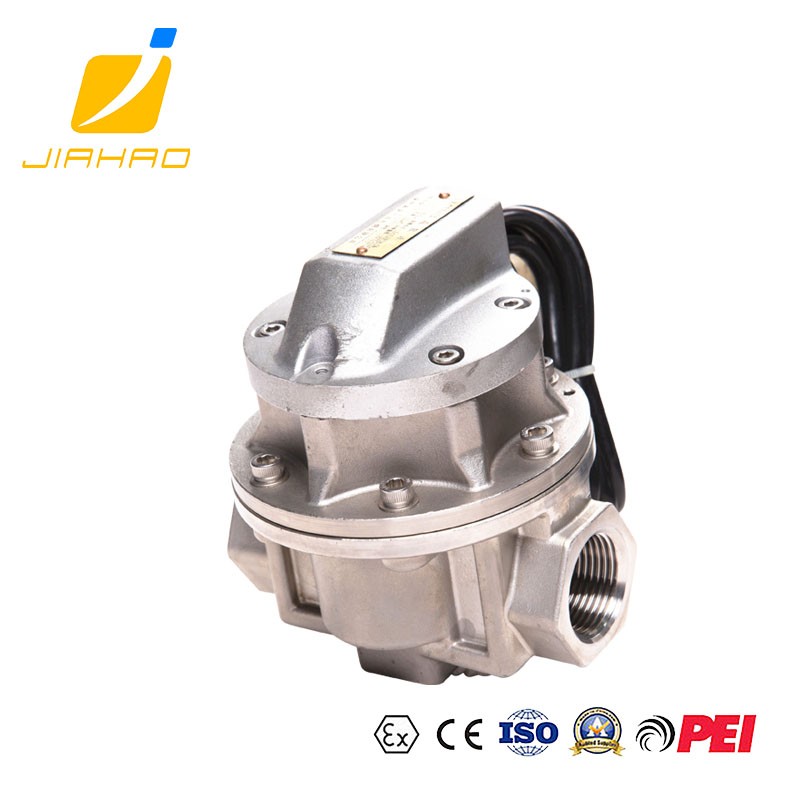

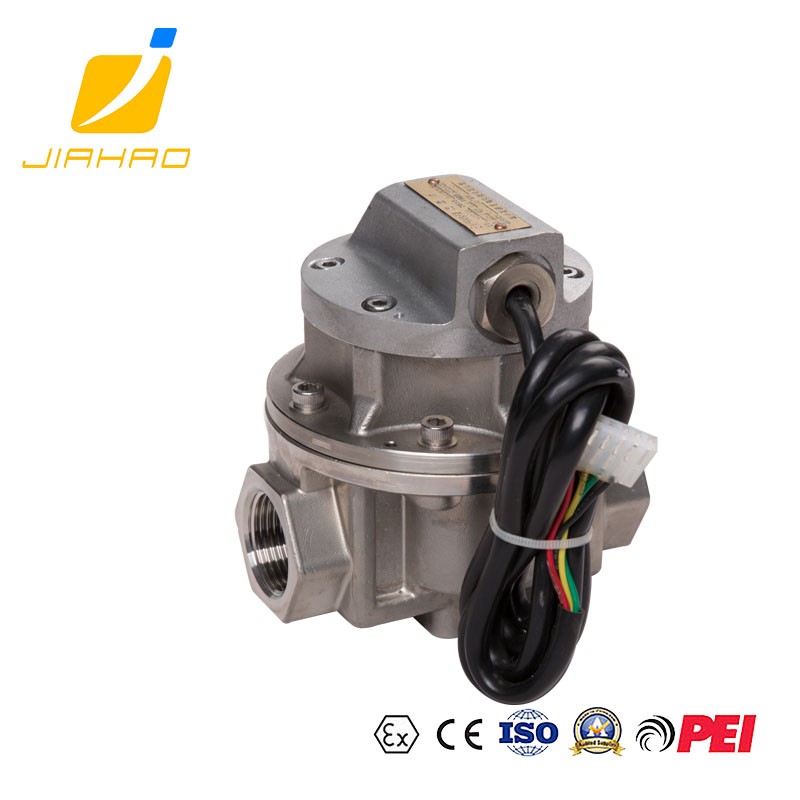

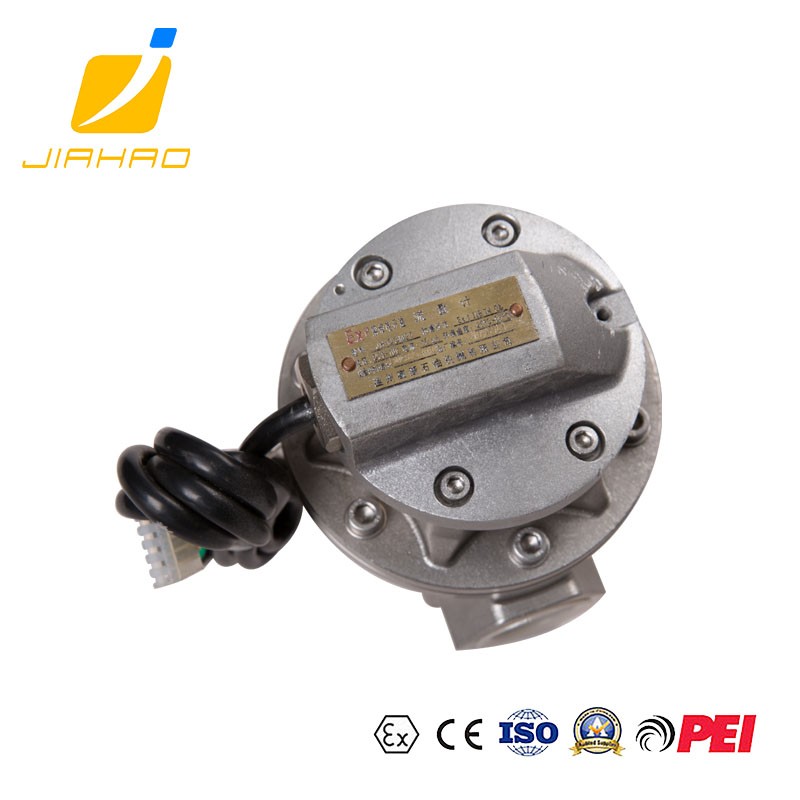

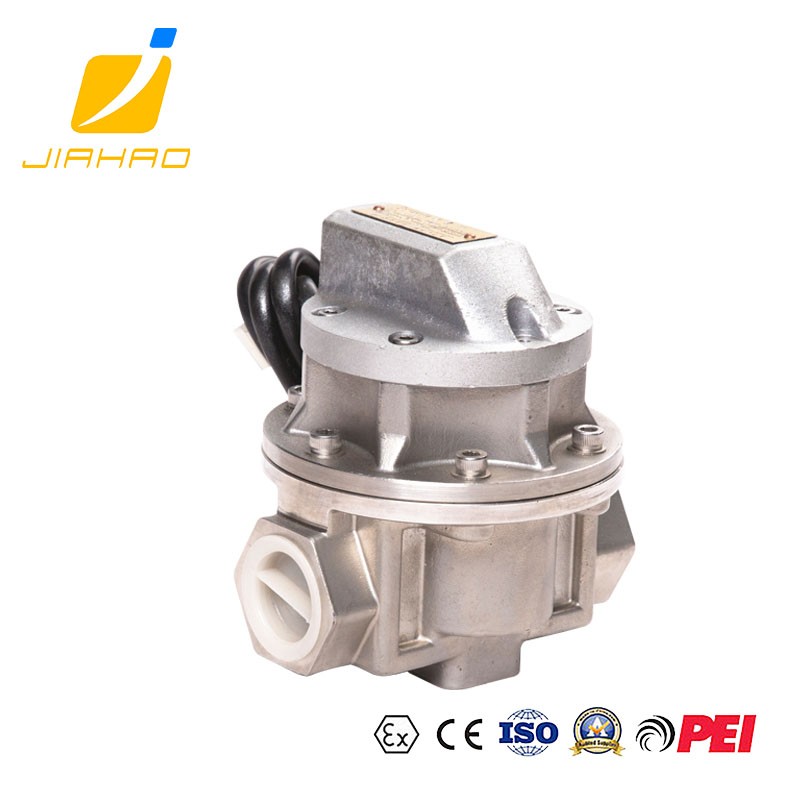

JH-OGMB-25 STAINLESS STEEL FLOW METER-100L/MIN


The OGMB-25 stainless steel oval gear flowmeter is a remote-induction type light-duty positive displacement flow instrument, which is widely used for liquid flow control in various industrial fields. This instrument is suitable for measuring various types of liquids, such as crude oil, diesel oil, gasoline, etc., and features a large measuring range, high accuracy, and ease of use and maintenance. It can meet the liquid flow metering requirements of petroleum, chemical, pharmaceutical, food, metallurgical, power, transportation and other industries.
