VAPOR RECOVERY SYSTEM STAGE Ⅱ

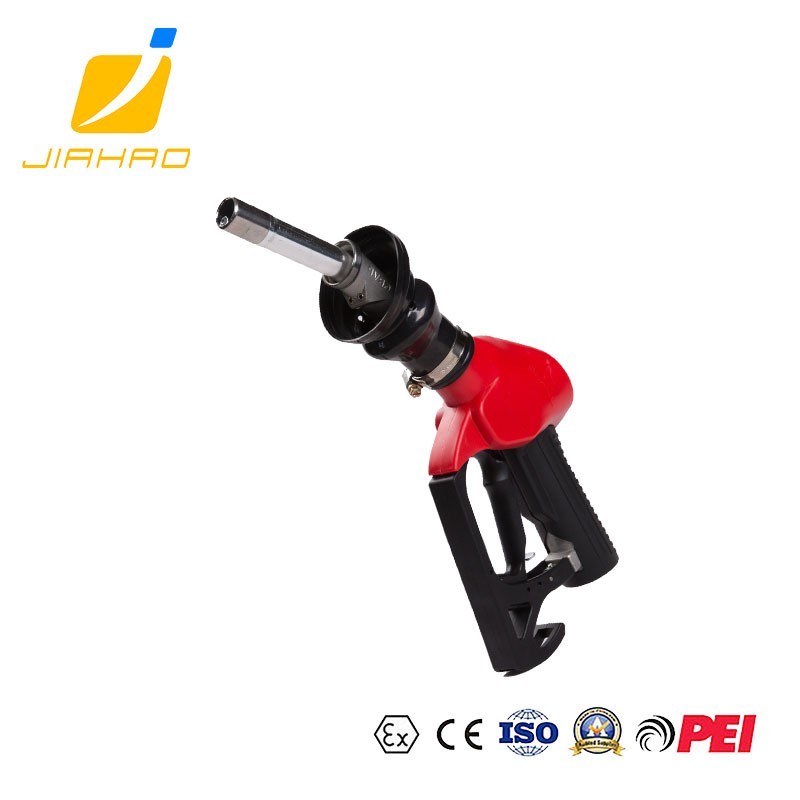

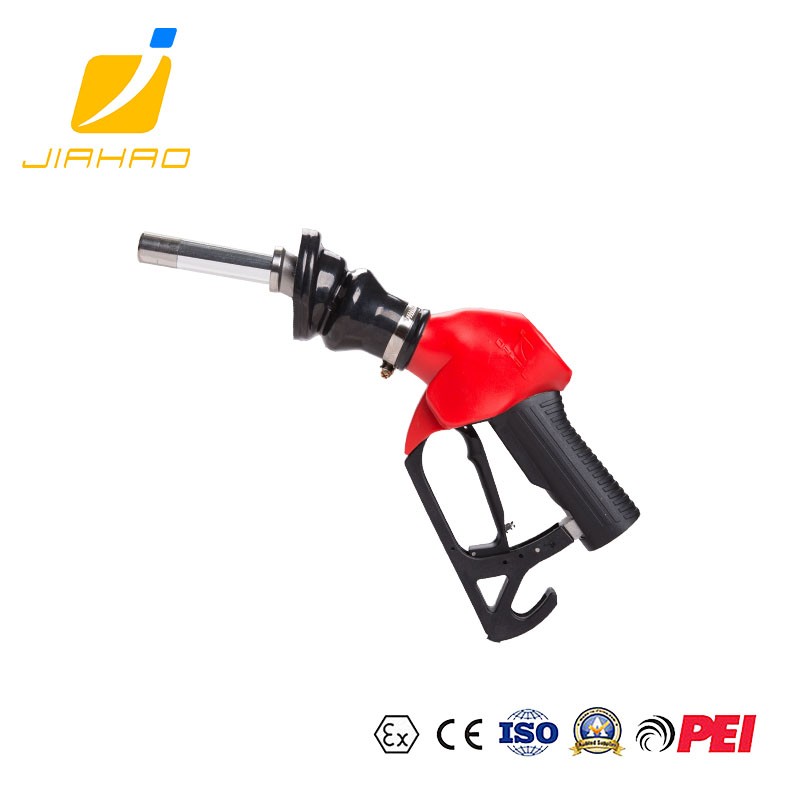

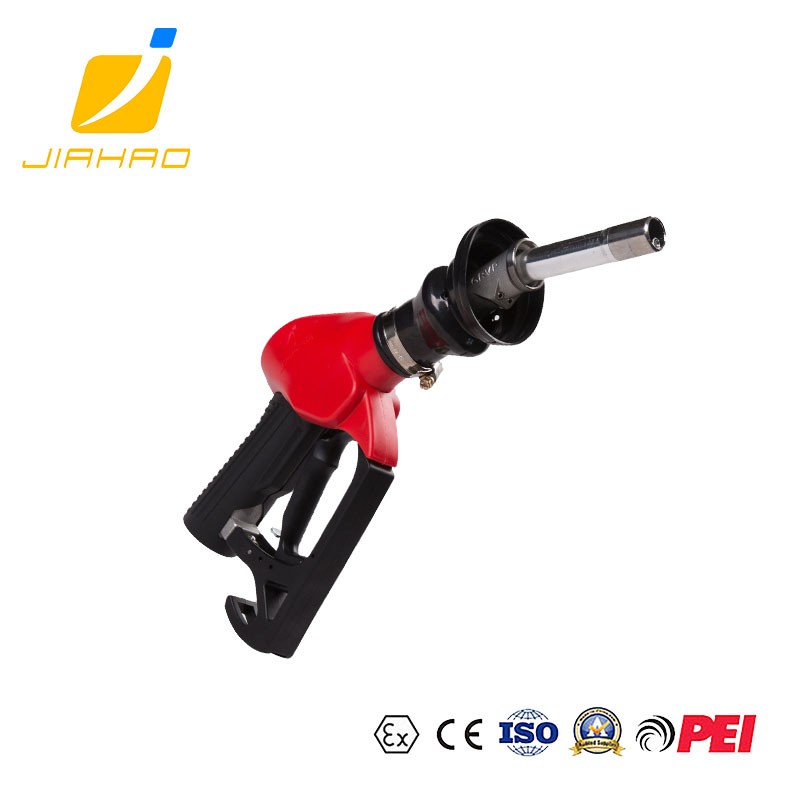

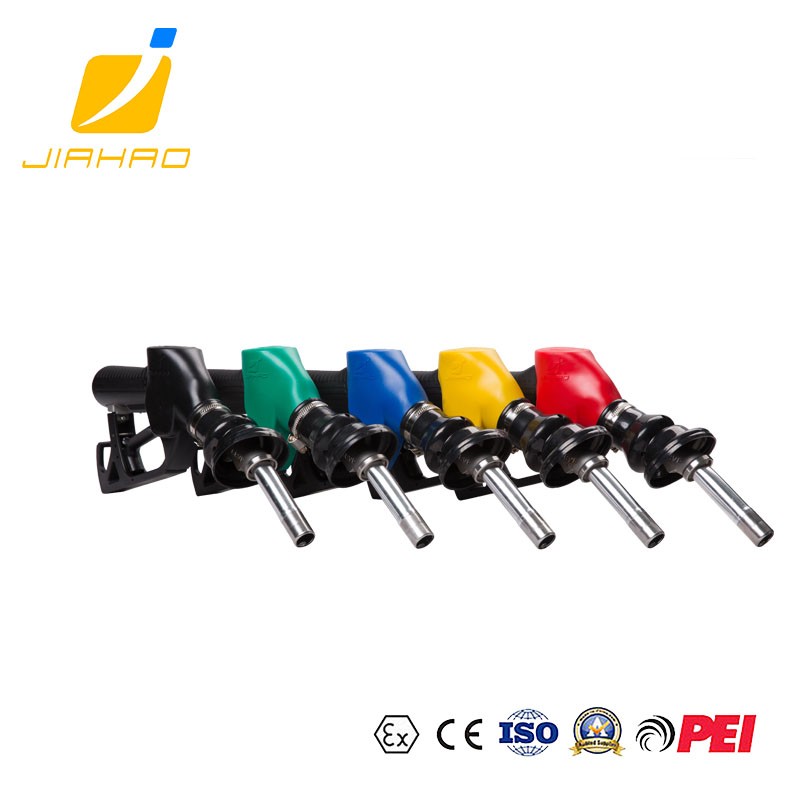

JH-VRQ2-80 VAPOR RECOVERY NOZZLE

Temperature -20℃~+40℃
Working pressure 0.22Mpa
Maximum working pressure 0.35Mpa
Maximum flow ≥42L/MIN
Inlet M34X1.5

Single net  weight 1.2kg


  • Product Detail


JH-VRQ2-80 VAPOR RECOVERY NOZZLE


1. The service life exceeds 96 months
2. It is suitable for any type of oil and gas recovery refueling machine, and it is easy to use.
3. It comes with integrated proportional valve (balance valve) to make the metering of the dispenser more accurate.
4. The azimuth safety self-sealing valve is safer.
5. The muzzle design is more reasonable and the absorption effect is better.
6. Reliable performance and easy operation.
7. High maintainability, any part can be easily replaced.
8. Flow rate: 45 liters/minute
9. Working pressure: 0.5bar-0.5bar
10. Working temperature: -20°~+55°C


Accessories
