ADBLUE EQUIPMNET SERIES

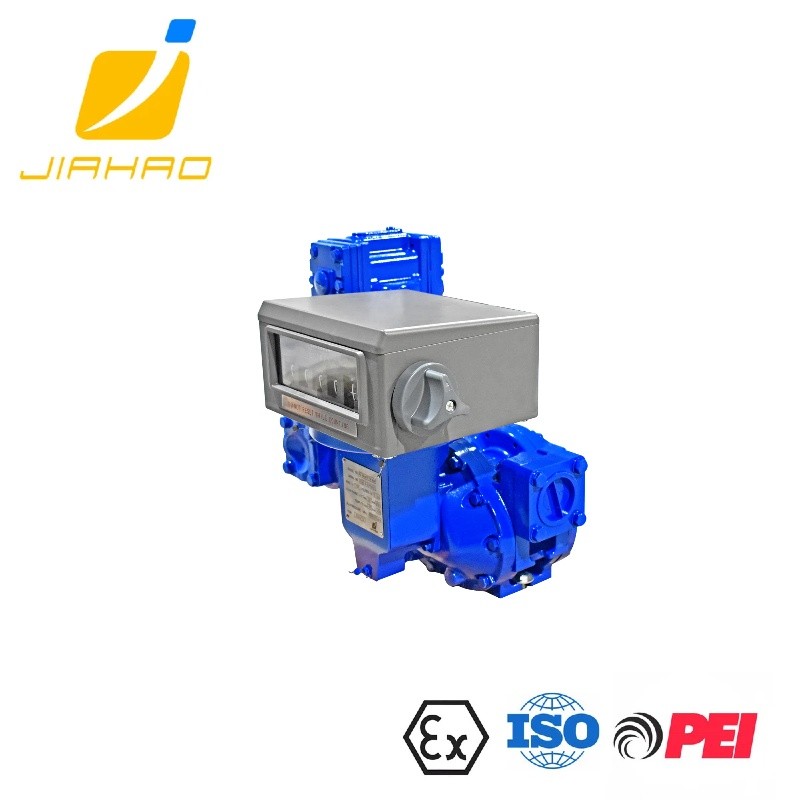

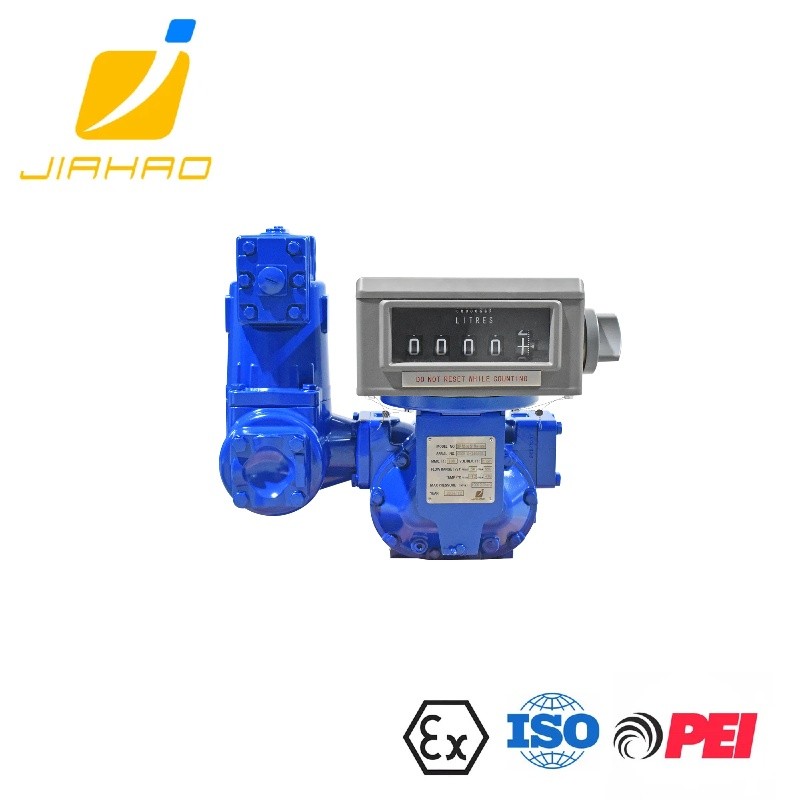

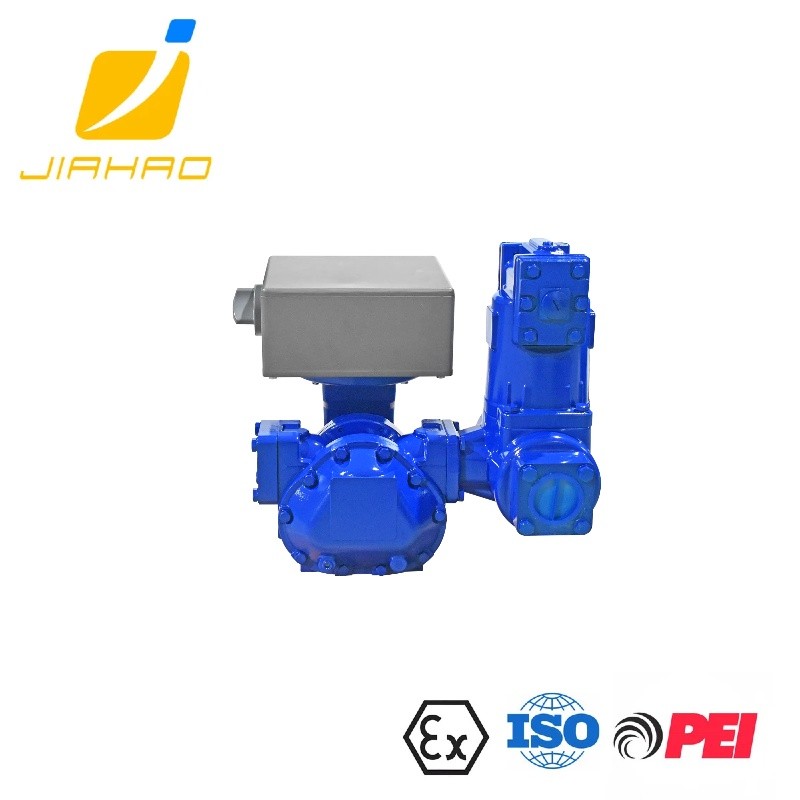

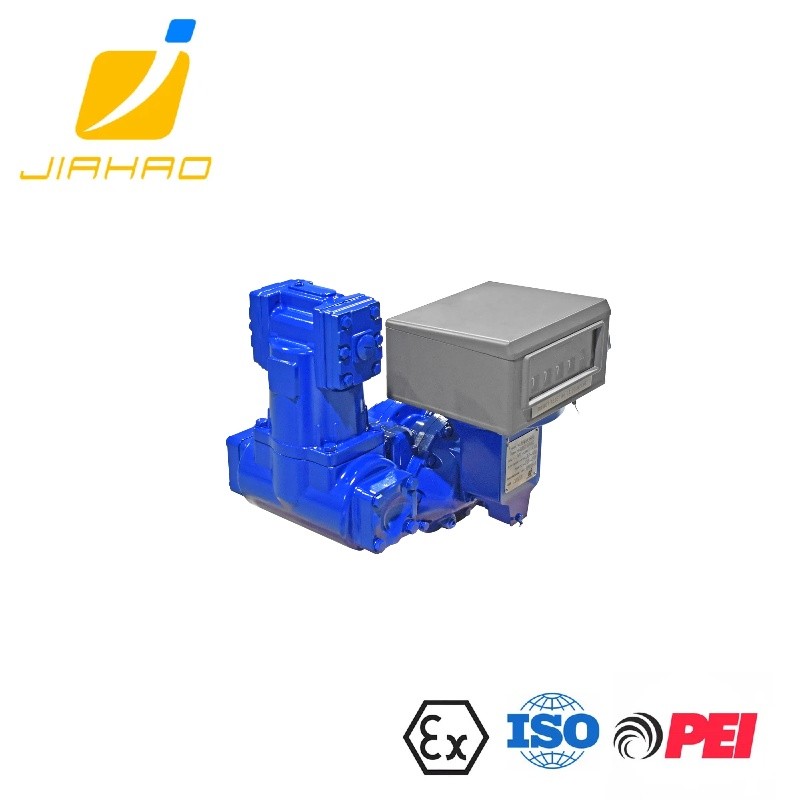

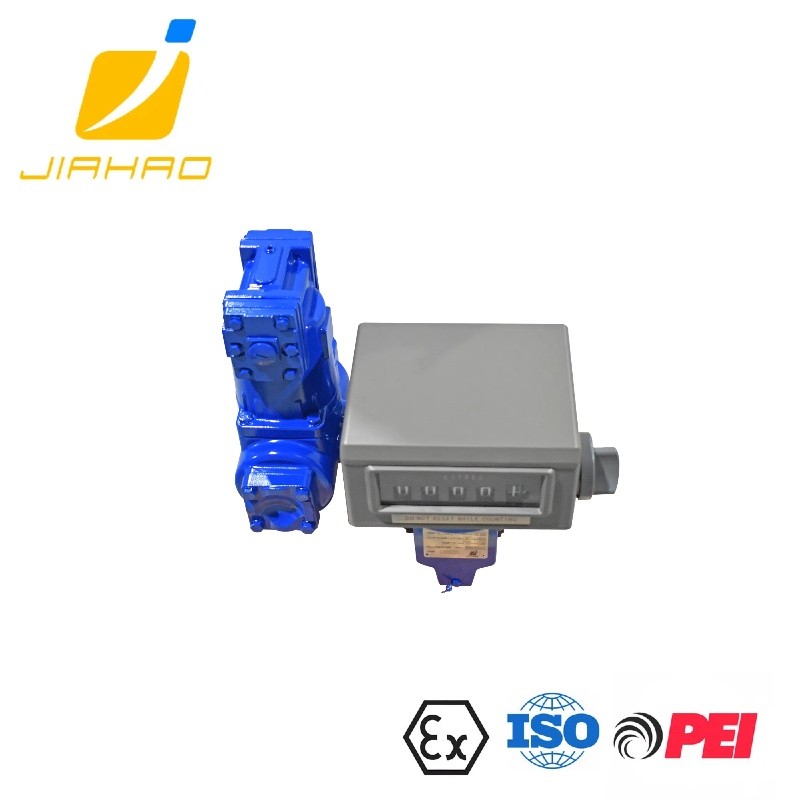

LC-50-DEF ADBLUE POSITIVE DISPLACEMENT TCS FLOW METER

Size 50mm/2''

Flow rate 28-380
Vol/r 0.681L
Max pressure 10BAR/150PSL
Accuracy ±0.2%
Repeatability ≤0.05%

Unit Liter/Gallon

Material Stainless steel

  • Product Detail

LC-50-DEF  ADBLUE POSITIVE DISPLACEMENT TCS FLOW METER


LC-50-DEF ADBLUE POSITIVE DISPLACEMENT TCS FLOW METER:Precision “Monitor” for AdBlue Metering


As a core metering device in commercial vehicle AdBlue filling systems, the LC-50-DEF ADBLUE POSITIVE DISPLACEMENT TCS FLOW METER focuses on precision metering at gas station AdBlue filling stations , AdBlue consumption monitoring for logistics fleets , and flow control of industrial AdBlue filling equipment . With high-precision metering and stable performance, it builds a solid defense for the accuracy of AdBlue delivery and cost controllability.


Precise Metering, Zero Data Error: Equipped with ultra-high metering accuracy of ±0.2% and repeatability of ≤0.05%, it is not affected by pressure fluctuations, temperature changes, or AdBlue viscosity, ensuring precise control of each filling volume, suitable for trade settlement and cost accounting scenarios.


Highly Adaptable, Wide Flow Coverage: 50mm/2" caliber design supports a wide flow range of 38-380L/min, meeting different filling needs from small trucks to large trucks; 0.681L/r displacement parameter accurately captures instantaneous flow changes, with metering response speed increased by 20%.


Corrosion-Resistant Material, Strong Work Condition Adaptability:Stainless steel body resists long-term corrosion from AdBlue solution, works stably in a wide temperature range of -25℃ to +55℃, adapts to complex environments such as gas stations and logistics parks with high humidity and large temperature differences, and has a service life 30% longer than similar products.


Safe and Reliable, Compliance Guaranteed: Maximum working pressure up to 10Bar/150PSI, certified by CE, ISO, etc., with built-in anti-leakage structure design to ensure stable operation under high-pressure conditions; supports LITER/GALLON dual-unit switching, adapting to metering standards in different regions worldwide.


Low Consumption and Stability, Low Maintenance Cost: No metal-contact measuring chamber design reduces wear and failure risks, daily maintenance only requires regular cleaning, and maintenance frequency is reduced by 50%; low pressure loss characteristic adapts to gravity flow and pump-pressure filling systems, energy-saving and efficient.

LC-50-DEF ADBLUE POSITIVE DISPLACEMENT TCS FLOW METER ,
helps you strictly adhere to metering standards!
