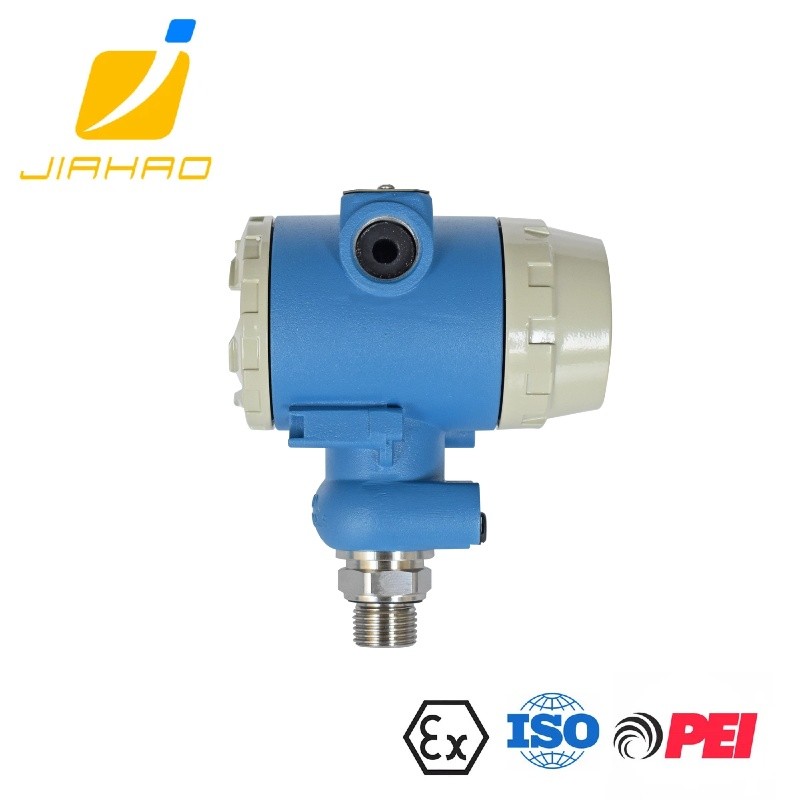

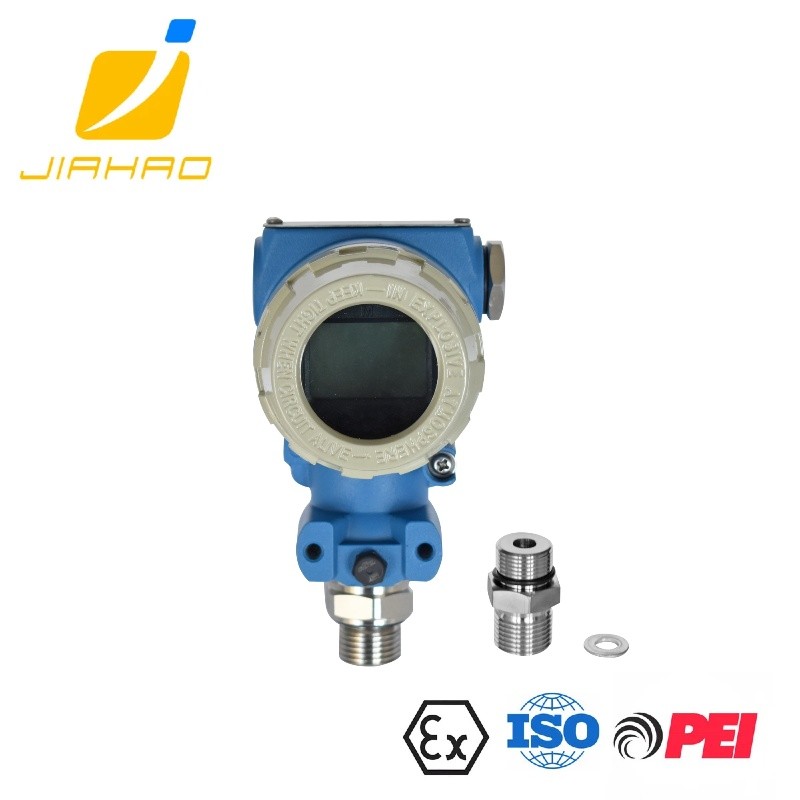

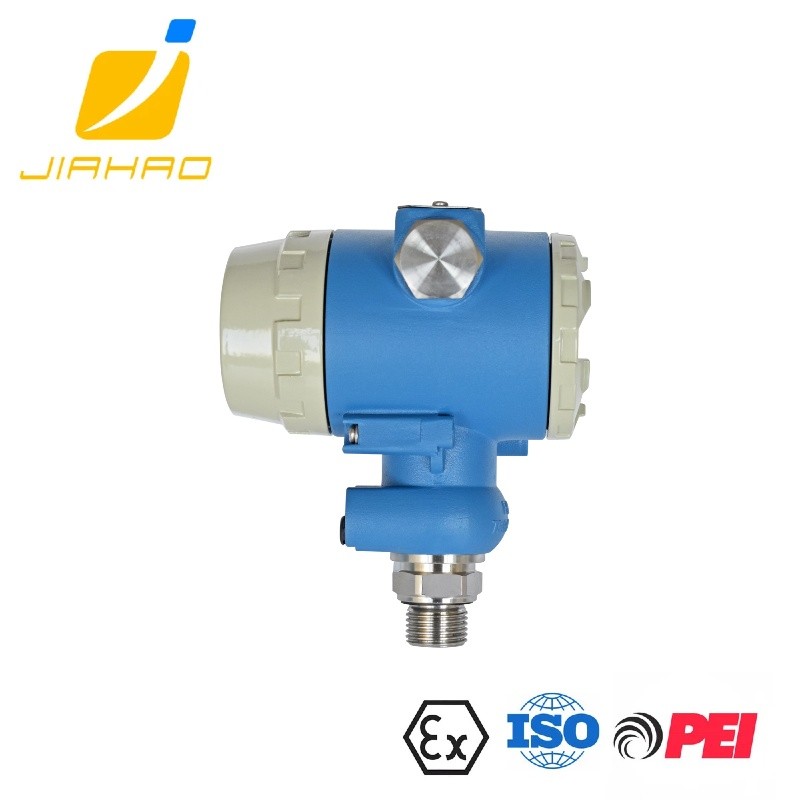

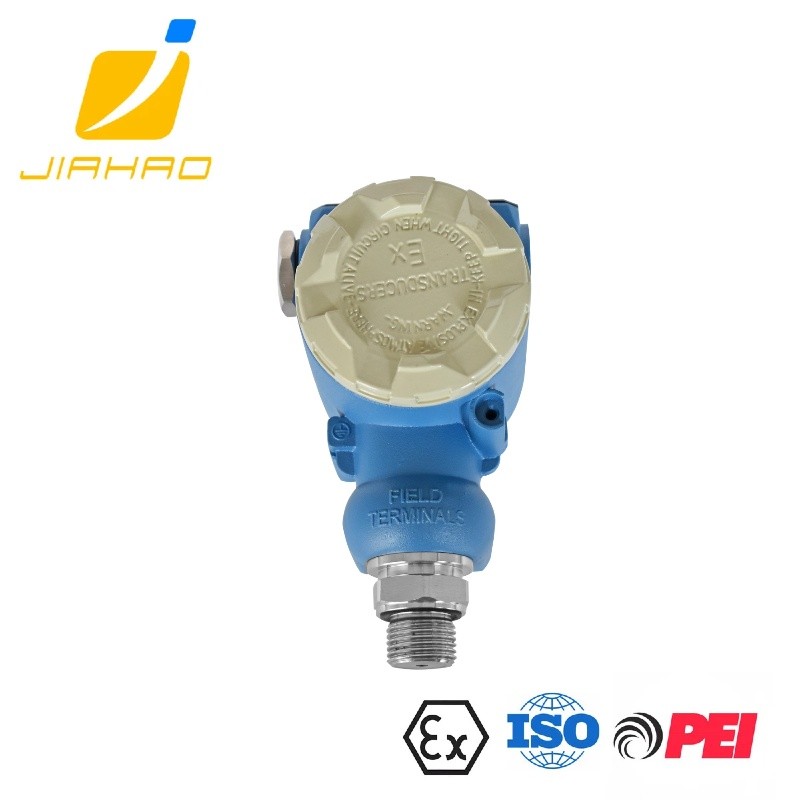

MDM3051DP Differential Pressure Transmitter With Screen

MDM3051DP Differential Pressure Transmitter: The “Smart Eye” for Pressure Monitoring in Vapor Recovery

As a key sensing component of our company's vapor recovery online monitoring system, the MDM3051DP Differential Pressure Transmitter (with display) focuses on precisely monitoring the pressure of the vapor recovery system and the tank pressure . With intuitive data presentation and reliable performance, it equips the safe and stable operation of the gas station vapor recovery system with a “smart eye”.

• Precise Monitoring: The measuring range covers - 3.5kPa ~ + 3kPa, and 4 - 20mA communication accurately transmits pressure data. It grasps the dynamic pressure of the system in real - time, helping to detect abnormalities in a timely manner.

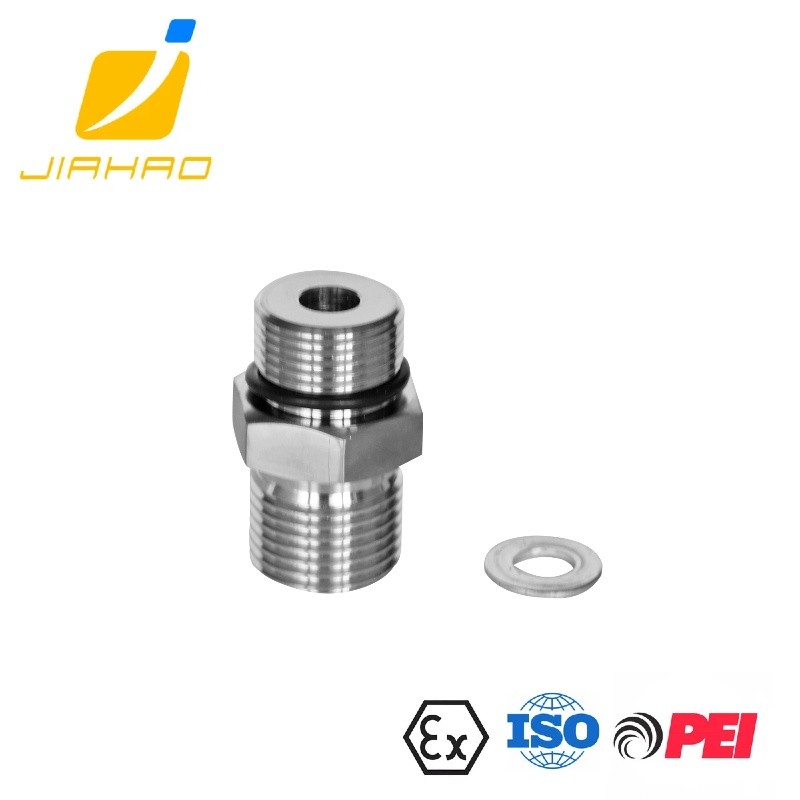

• Stable Compatibility: Powered by a wide voltage range of DC14.5 - 45V, it is compatible with various equipment environments; two flange connection threads NPT1/4 (center distance 54mm) and joint threads NPT 1/2 or M20×1.5, flexibly adapting to different installation scenarios.

• Safe and Reliable: With Ex db IIC T6 Gb/Ex ia IIC T4 Ga explosion - proof certification, it is fearless of the flammable and explosive environment of gas stations and stably safeguards the safety of system pressure monitoring.

• Convenient Deployment: Configured as 1 - 2 pcs/station, it supports installation in multiple positions (below the exhaust pipe ball valve of the gasoline tank, at the manhole cover, etc.), adapts to different station layouts, and quickly integrates into the existing system.

MDM3051DP Differential Pressure Transmitter,helps you control the system pressure in real - time
