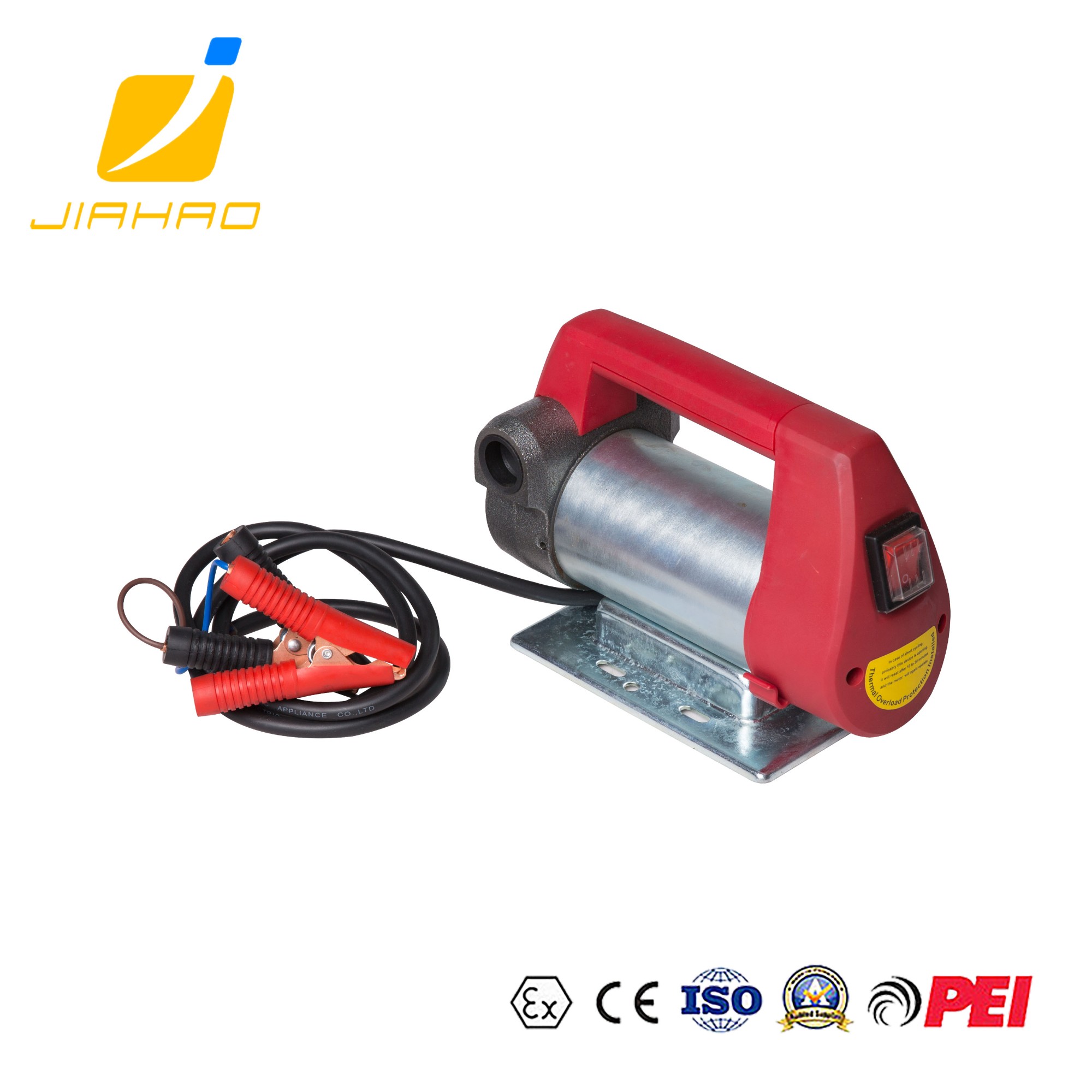

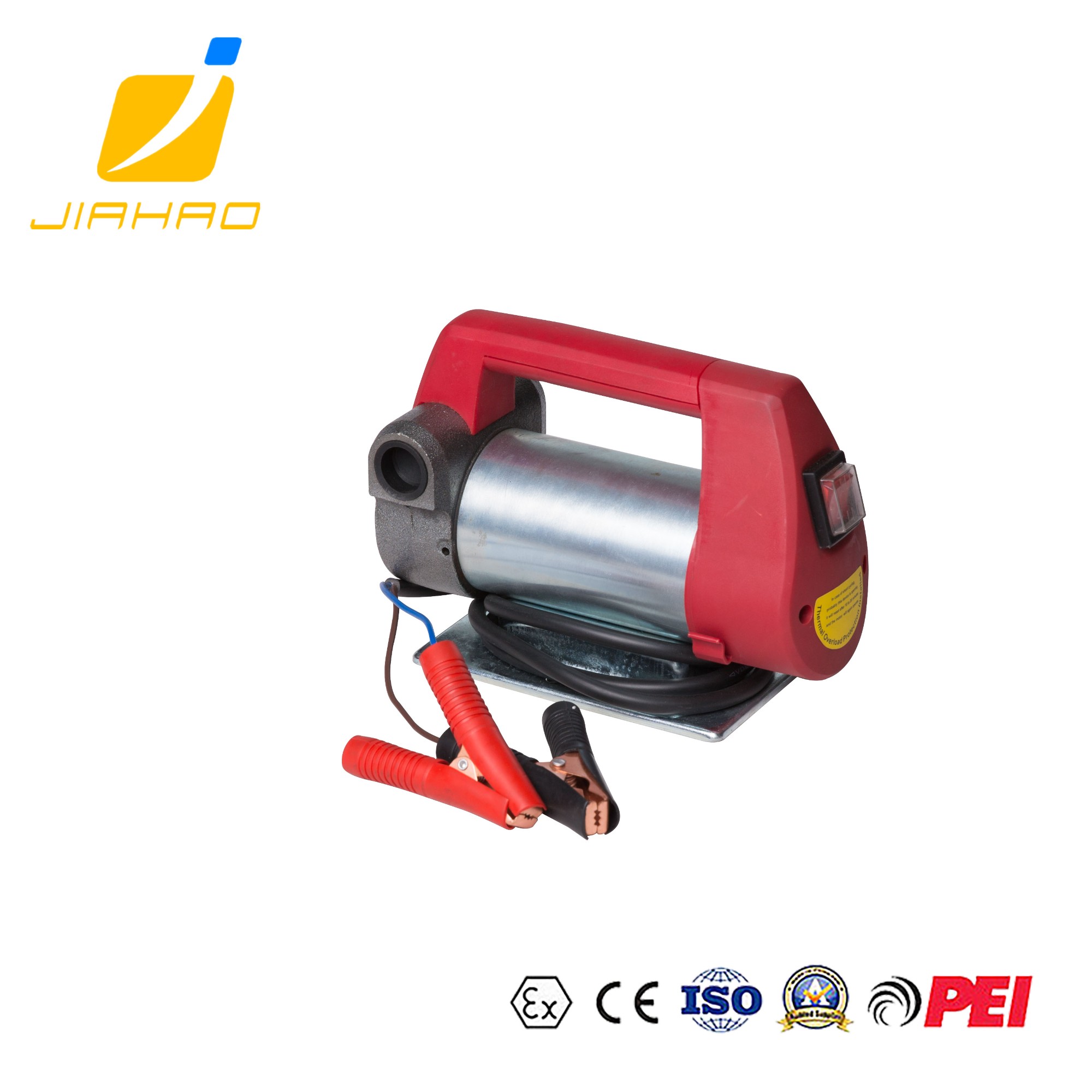

JH-DYB40 PORTABLE DC DIESEL PUMP

• For fueling diesel,Kerosene, not for gasoline
• Mechanical seal that guarantees constant reliability, even in low temperatures
• Cast-iron pump casing, treated against corrosion and paint- finished
• Vane pump with steel rotor
• Bypass valve built in.
• ln-built 100-micron filter,easily accessible for cleaning
• lnduction motor with aluminium casing. Grade of protection : Ip54
• Continuous running

Specification

Model	DYB40-DC12/24
Flow rate	20-40L/min
Max pressure	3Bar
Power	DC12/24
Bypass valve	Yes
Strainer	Yes
Power	120W
Inlet&outlet	3/4''
Dimension	450*250*240mm
Net weight	7Kg
Gross weight	8Kg
Package	2pcs/carton
