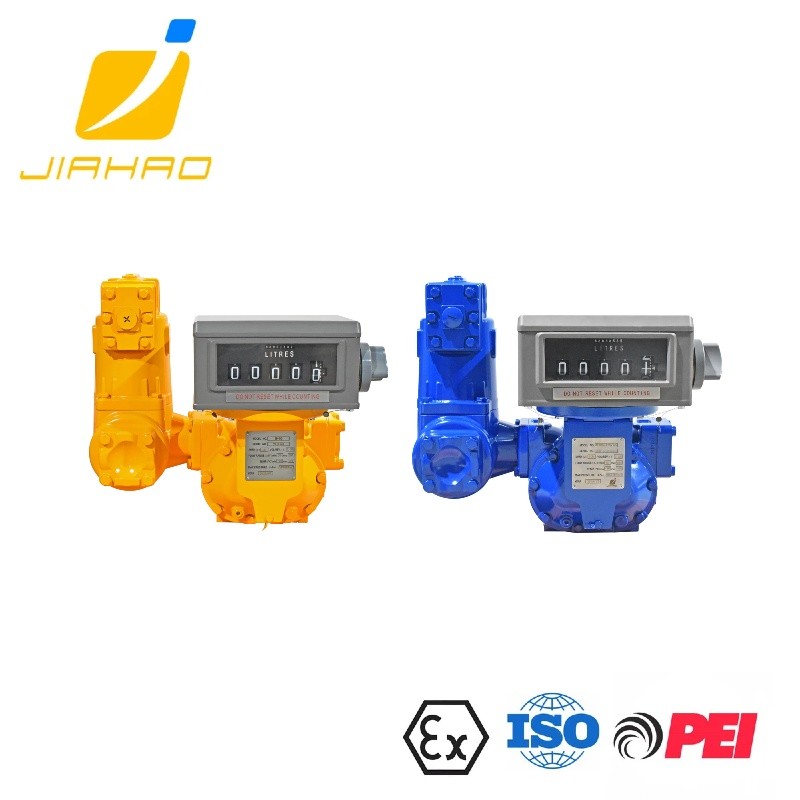

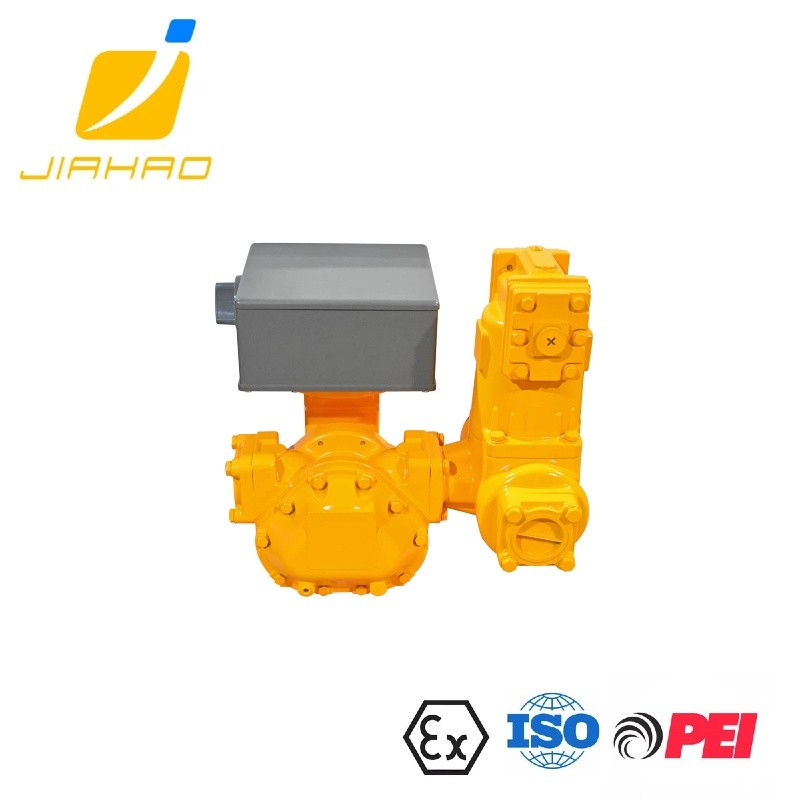

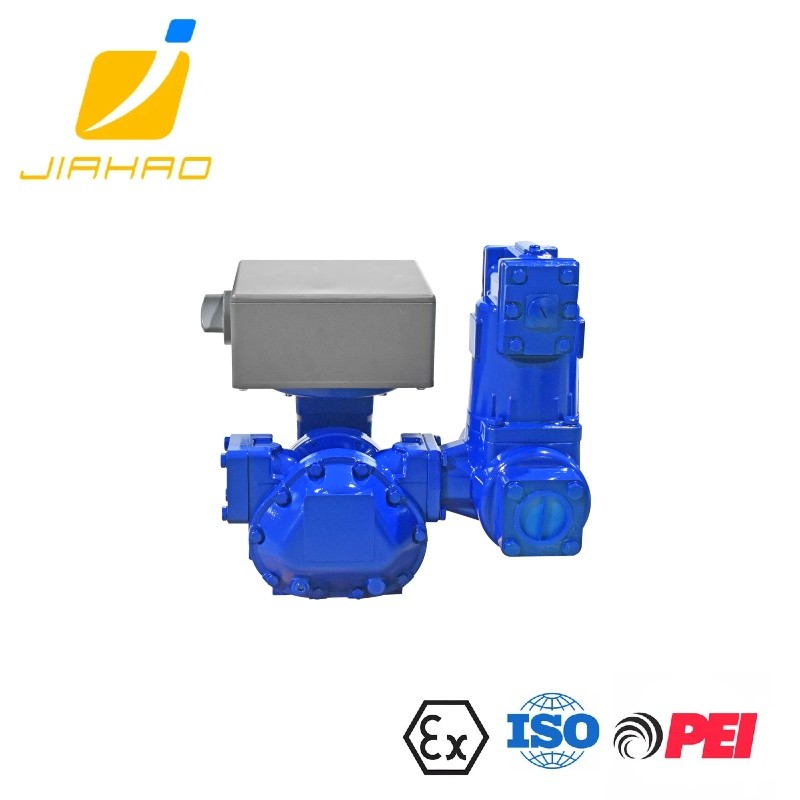

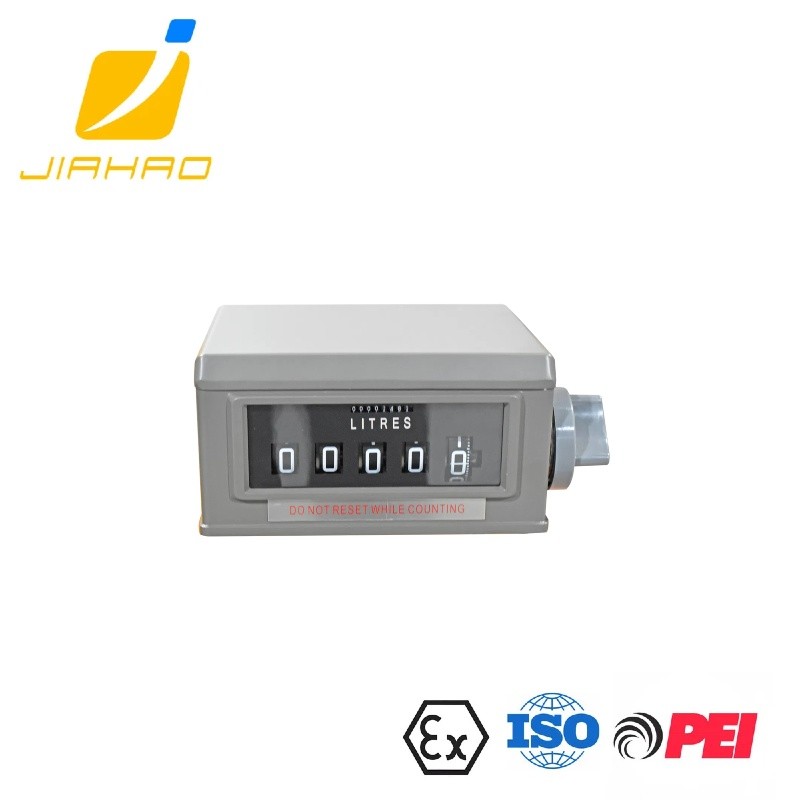

TCS SERIES HIGH ACCURACY POSITIVE DISPLACEMENT FLOW METER

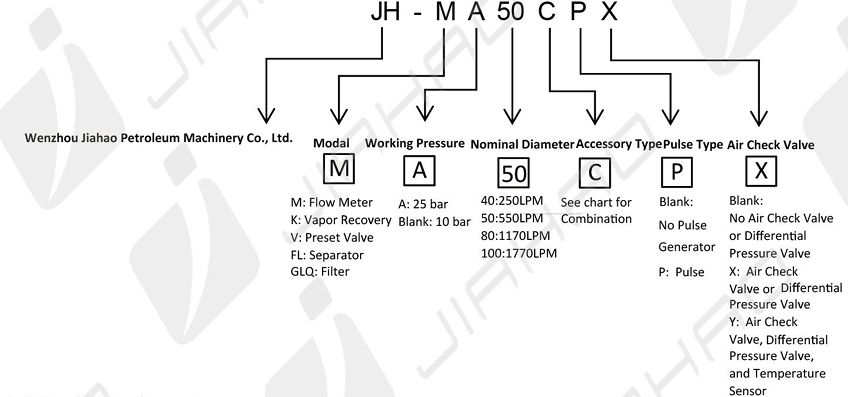

Model Nomenclature

Model Configuration

• Excellent stepless adjusting mechanism allows a micro adjustment of the meter.
• High accuracy and repeatability over the widest range of flow;Superior accuracy at constant flow.
• Low maintenance,low wear,long life service.
• Low pressure loss,a true gravity flow meter.
• Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
• Choice of aluminum,cast iron and stainless steel materials of construction.

BASIC PARAMENTERS
Model		JH-M40	JH-M50	JH-M50UR	JH-MA50CX	JH-M80	JH-M100	JH-M150
Nominal Diameter		1 1/2"	2"			3"	4"	6"
Flow Range	LPM	25-250	55-550	55-550	38-380	110-1100	170-1700	300-3000
	GPM	6-60	15-150	15-150	10-100	30-300	45-450	80-1000
Max. Working Pressure	PSI	150			375	150
	BAR	10			25	10
	KPa	1000			10	1000
Accuracy		±0.2%
Repeatability		0.12%

PULSE PARAMENTERS
Model	JH-M40	JH-M50	JH-M80	JH-M100
Displacement	0.309L	0.681L	1.839L	5.102L
Pulse	200P/R
Pulse Equivalent	0.001545P	0.003405P	0.009195P	0.02551P
