JH-ZFQ1J-100 Measuring Fuel Nozzle With Digital flow Meter Automatic Fuel Nozzle

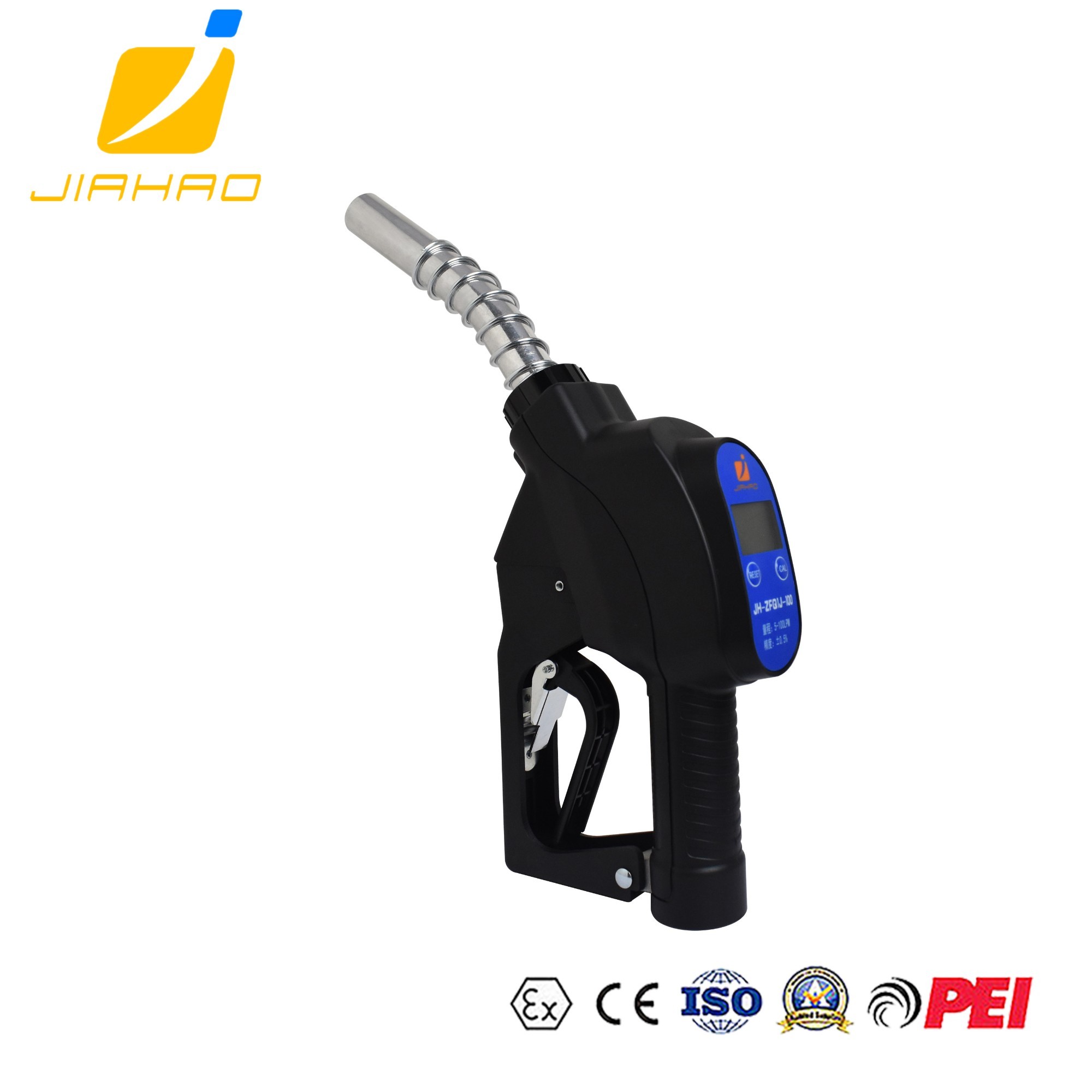

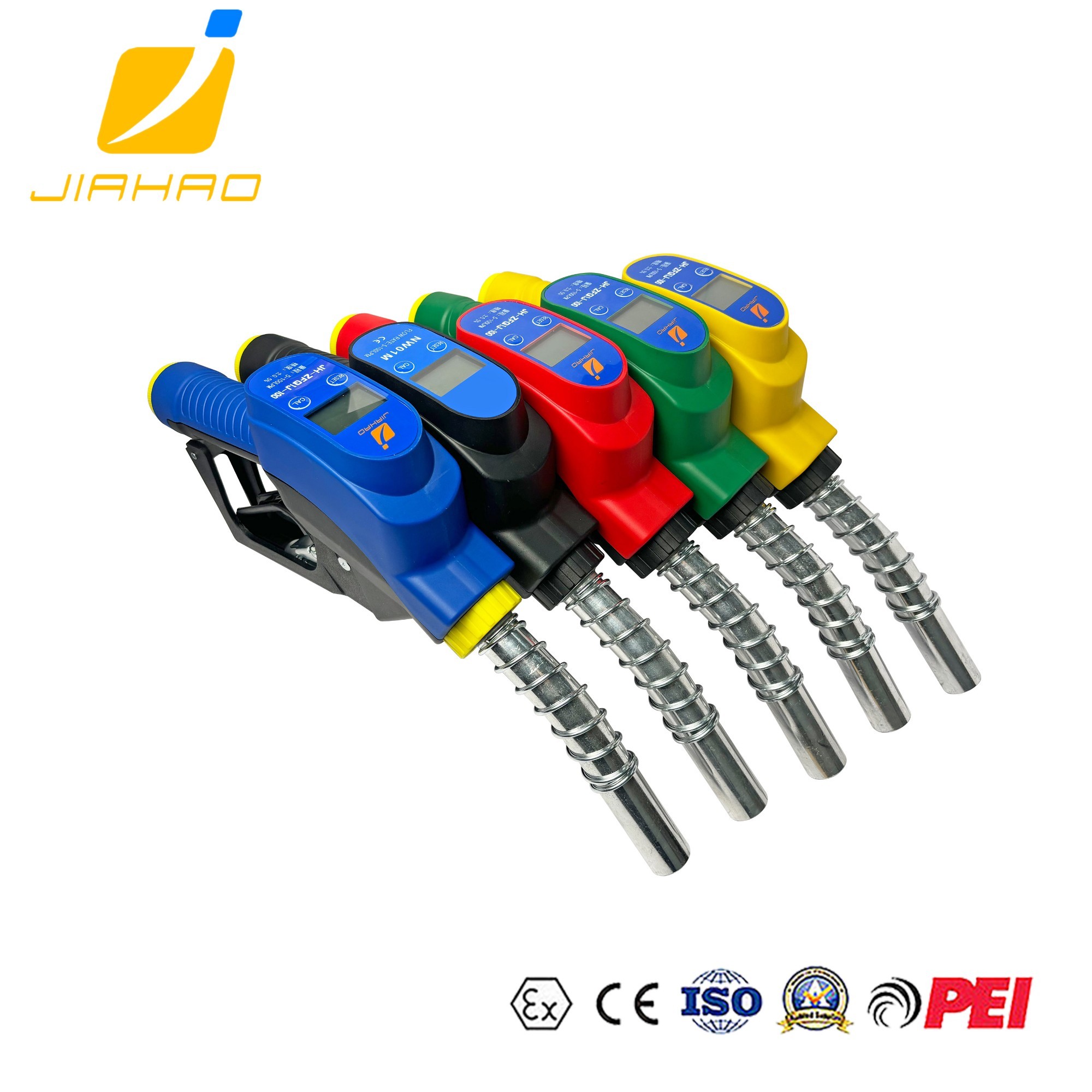

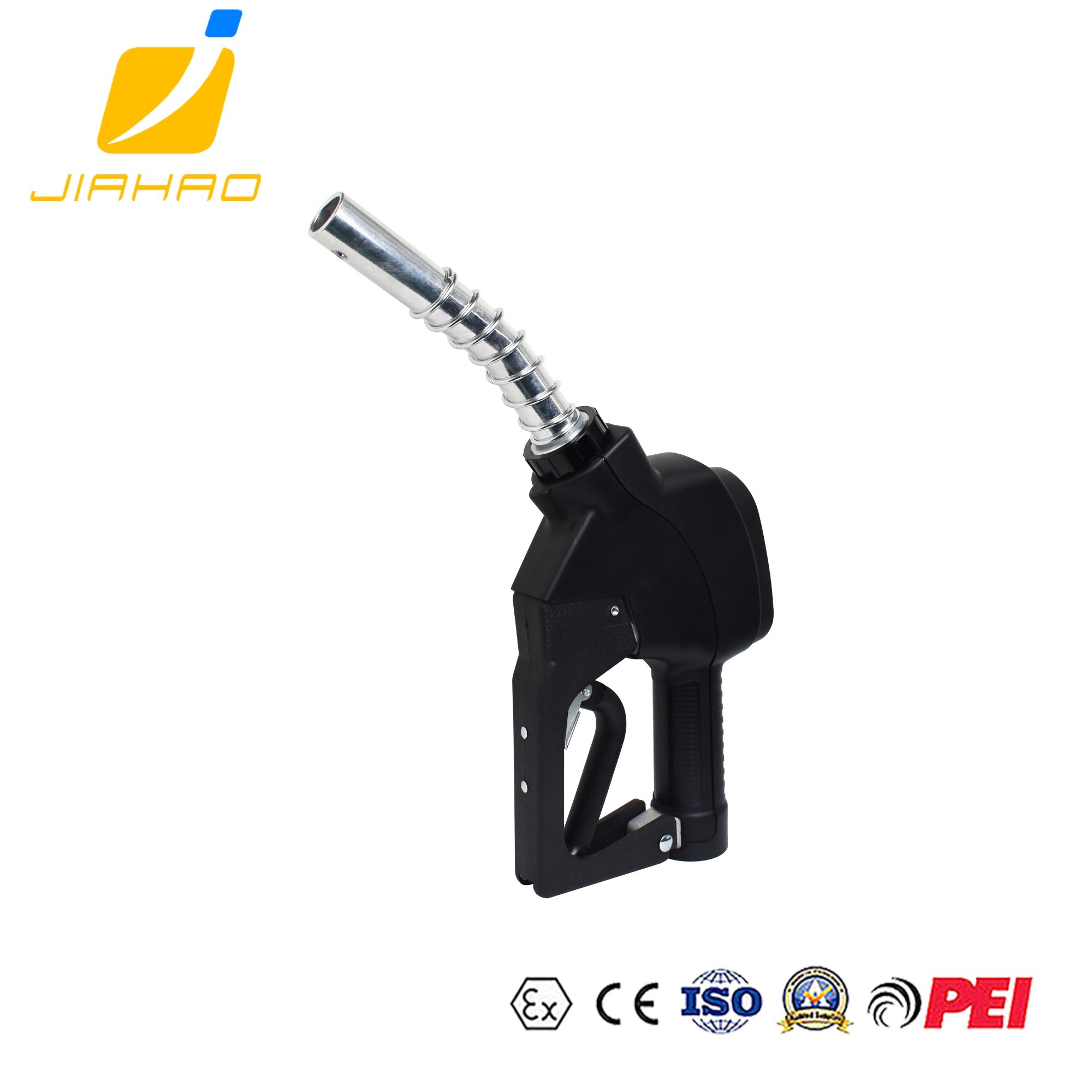

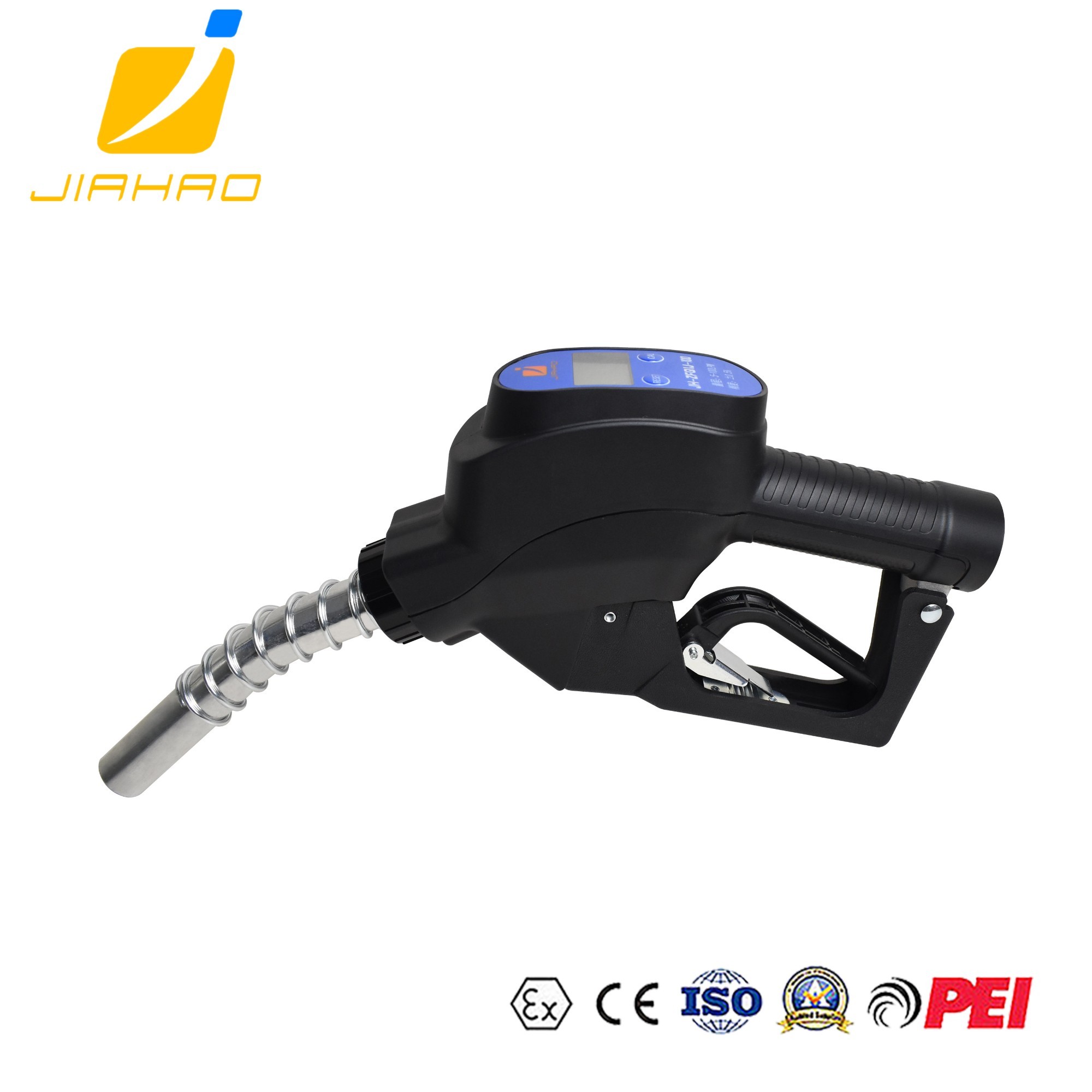

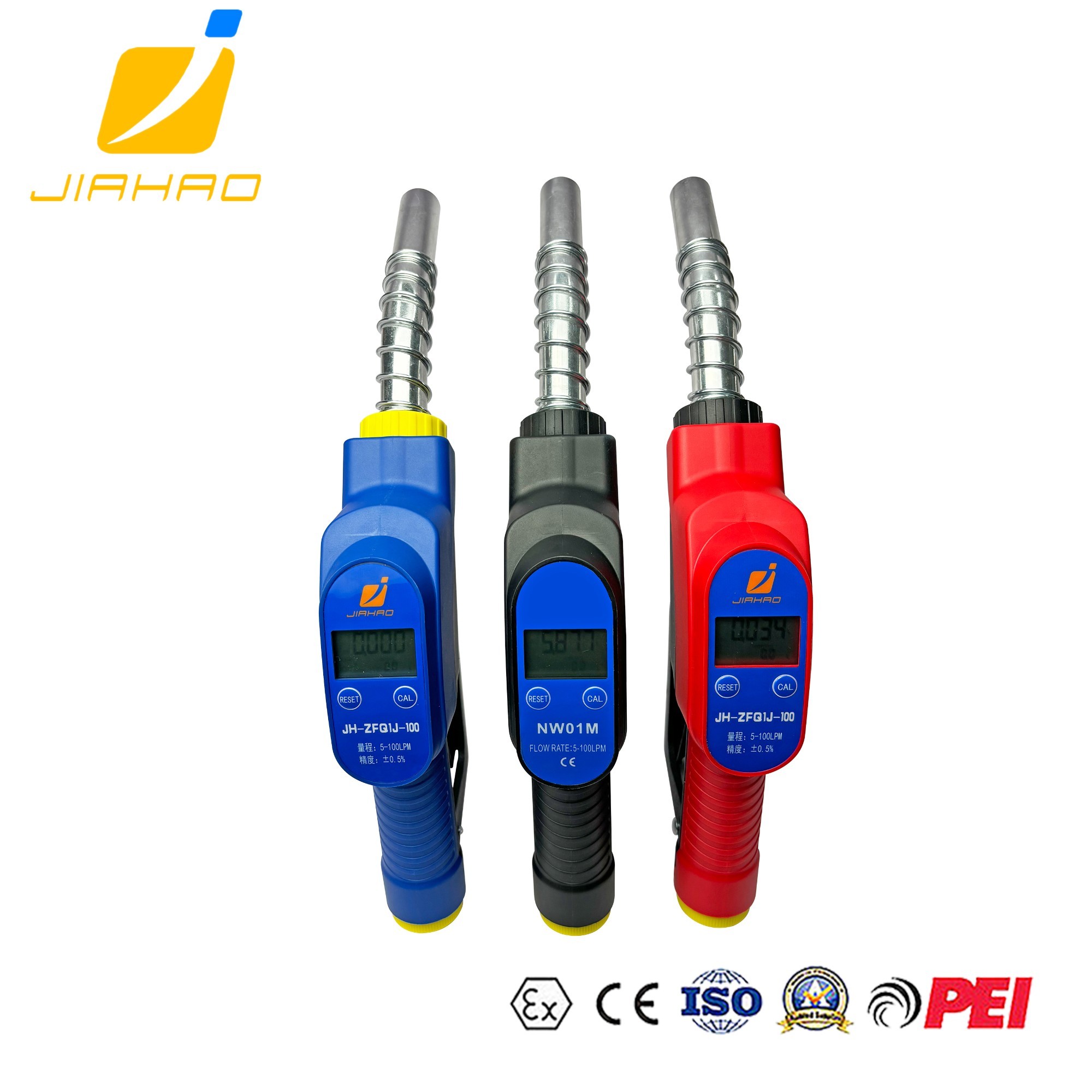

JH-ZFQ1J-100 Digital Flow Meter Fuel Nozzle: The "Precision Steward" for Intelligent Filling

As a core intelligent filling equipment of Wenzhou Jiahao Petroleum Machinery Co., Ltd., the JH-ZFQ1J-100 Digital Flow Meter Fuel Nozzle integrates automatic control and precise measurement functions. Specially designed for fuel filling in gas stations, logistics centers, etc., it redefines efficient filling experience with digital technology.

Dual-Unit Digital Display & Precise Measurement: Equipped with a high-precision digital flow meter with ±0.5% accuracy, supporting real-time display of liters/gallons. The 10-100L/min wide flow range adapts to different filling needs, from small vehicles to large equipment, eliminating cost losses caused by measurement errors.

Automatic Protection & Safety Reliability: Built-in automatic shut-off device cuts off oil flow instantly when the tank overflows to prevent leakage. Fluororubber skeleton seals resist oil and high temperatures, combined with 0.25Mpa max working pressure, suitable for gasoline, diesel and other fuel media, with a service life far exceeding ordinary seals. 0.35V low-voltage operation reduces spark risk, adapting to flammable and explosive environments.

Flexible Compatibility & Easy Operation: Available with 20/24/30mm nozzle sizes, matched with BSP/NPT 3/4" or 1" inlet threads, compatible with mainstream dispenser pipelines without additional modification. Lightweight aluminum body (1.8KG per unit) ensures comfortable grip and reduces operational fatigue. Split structure allows battery replacement and internal maintenance without disassembling the whole unit, improving maintenance efficiency by 50%.

Compliant & Durable with Quality Assurance: Certified by ISO 9001, ATEX, etc., meeting international safety standards for fuel filling equipment. 1-year warranty with 100% factory inspection for stable performance. Packed 10 units per carton (420×340×400mm), facilitating bulk transportation and storage, quickly integrating into existing filling systems.

JH-ZFQ1J-100 Digital Flow Meter Fuel Nozzle, improves management efficiency and reduces operational costs!
