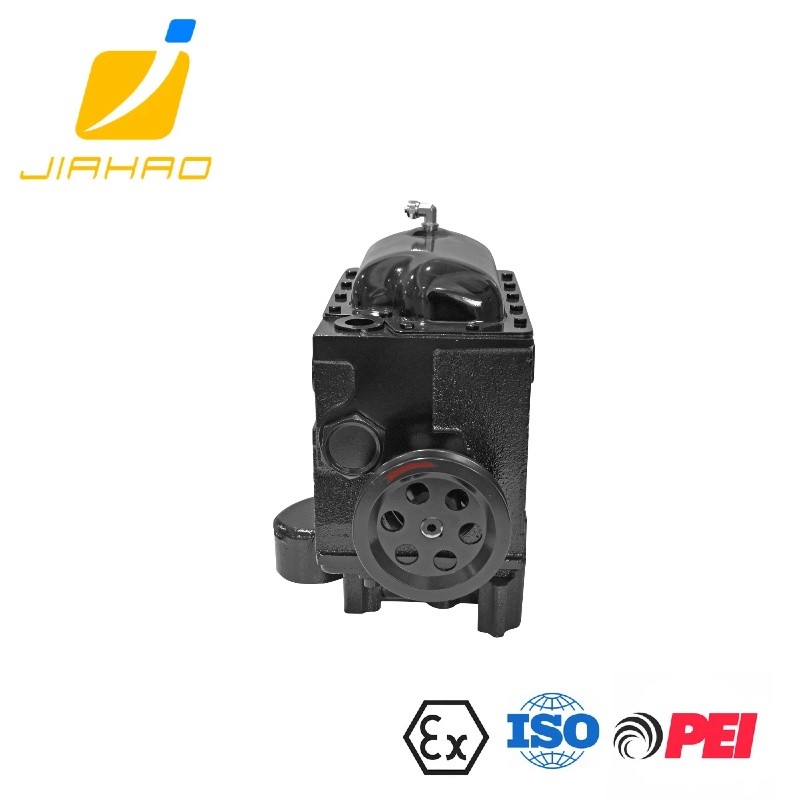

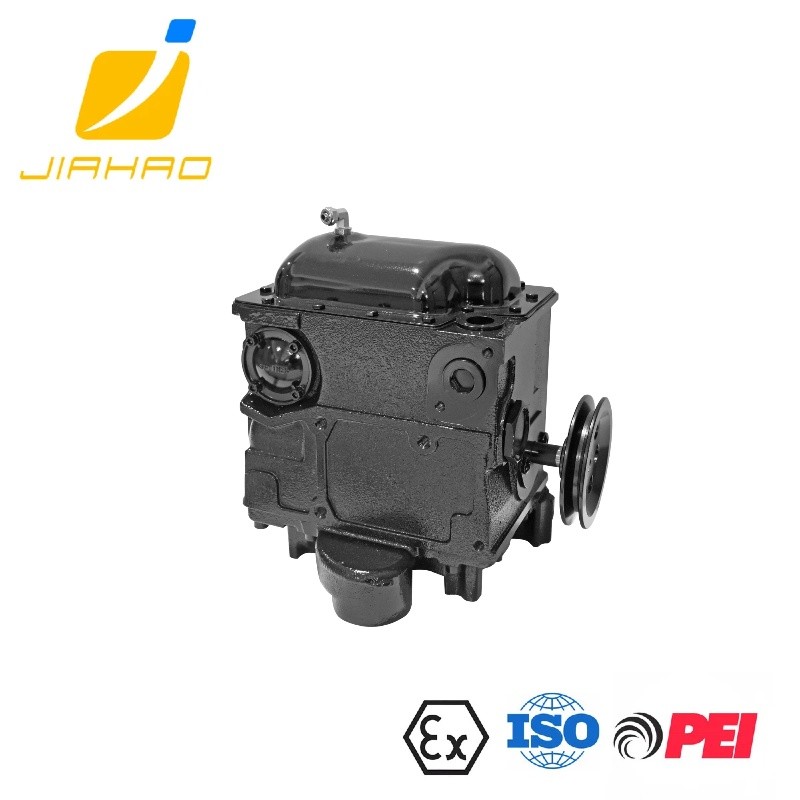

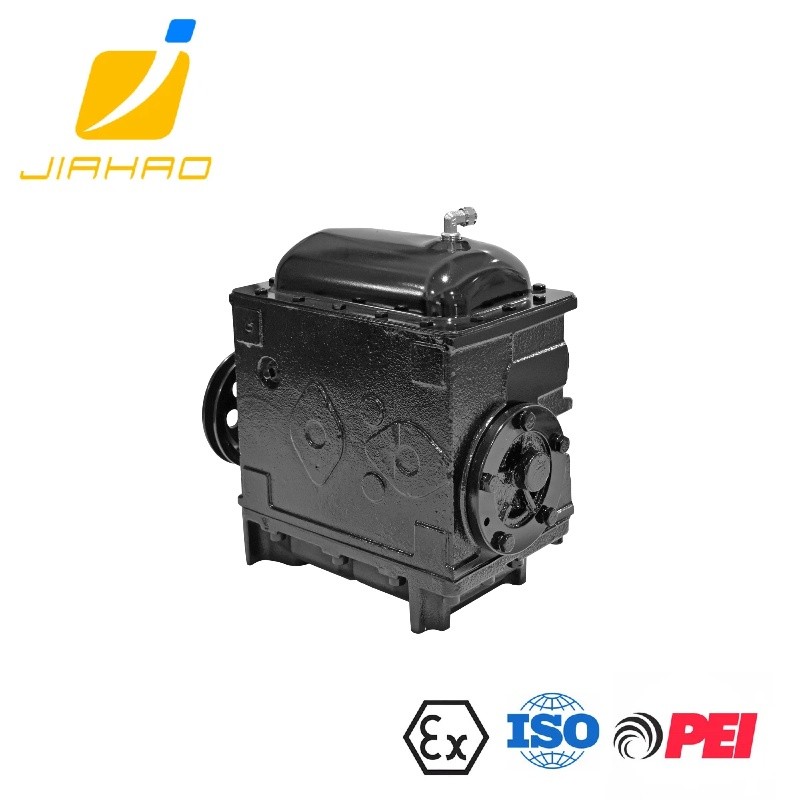

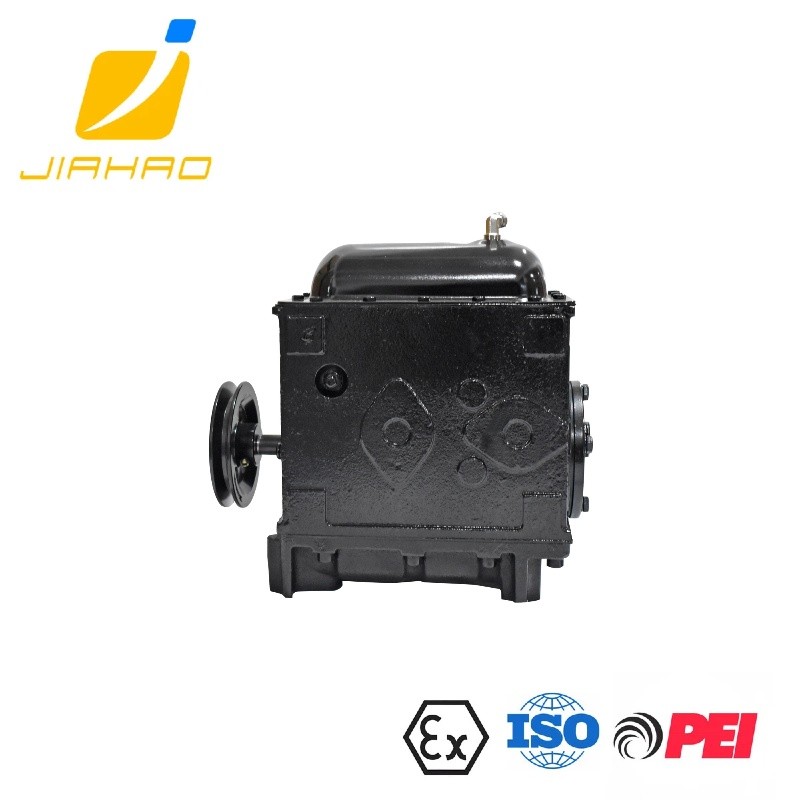

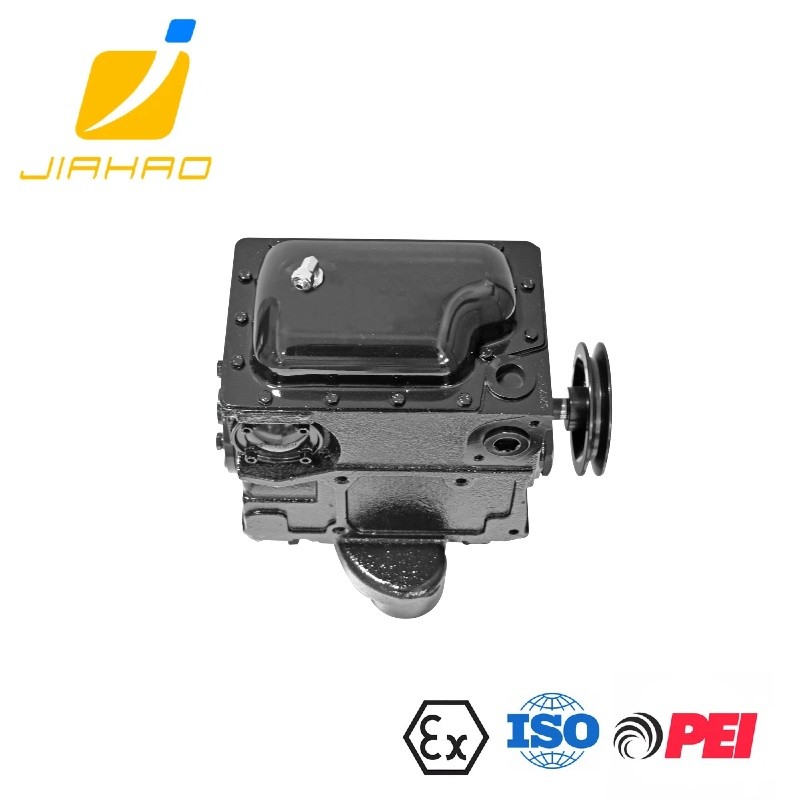

JH-CP2 Tochkeim Combination Pump

JH-CP2 Tochkeim Combination Pump——A High-Efficiency Gas-Liquid Transfer Equipment with Integrated Functions

JH-CP2 Tochkeim Combination Pump is an integrated combination pump specially designed for fuel dispenser matching. It integrates suction, oil-gas separation, and transfer functions, efficiently handling gas-liquid mixtures in oil media such as gasoline, kerosene, and diesel. With its compact structure and stable performance, it becomes an ideal choice for fuel transfer scenarios.

Efficient Transfer, Wide Adaptability: With a rotation speed of 900 rpm and a flow rate range of 40-55 L/min, it quickly completes oil transfer. The vacuum degree is ≥0.06 MPa, ensuring strong suction capacity to stably draw oil even under complex working conditions. The maximum working pressure reaches 2.4 MPa, meeting the pressure requirements of scenarios like fuel dispensers.
Oil-Gas Separation, Clean Transfer: Equipped with a built-in oil-gas separation chamber, it efficiently separates air from oil—oil settles at the bottom due to gravity and flows back to the oil inlet, while gas is discharged from the exhaust port. This ensures clean transferred media and reduces the impact of air resistance.
Low Noise, Durable, and Adaptable to Extreme Environments: Noise level is ≤72 dB, operating quietly without disturbing the surroundings. It runs stably in a wide temperature range of -25℃~+55℃, adapting to different climate regions. With a net weight of 33 kg and overall dimensions of 40×31×39 mm, its compact structure saves installation space. Built-in components like filters and check valves extend the equipment’s service life.

Structural and Functional Highlights

The pump integrates core components such as pump, oil-gas separator, check valve, and return valve. The fully built-in design makes it small in size and compact in layout. When the oil gun is closed, if the pressure in the oil outlet chamber is ≥2 MPa, the return valve automatically opens, and oil flows back to the inlet, avoiding overpressure damage and enhancing operational safety.
Whether for matching gas station dispensers or other industrial scenarios requiring handling of gas-liquid mixtures, JH-CP2 Tochkeim Combination Pump simplifies transfer processes and improves operational efficiency with its advantages of "multi-functional integration, efficient separation, and stable durability".

JH-CP2 Tochkeim Combination Pump—40-55L/min efficient transfer, clean oil-gas separation, low noise & wide temp adaptability, ideal for dispensers!
