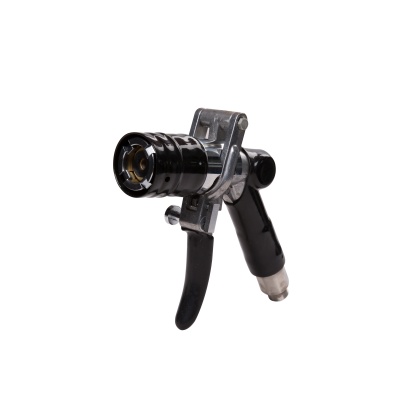

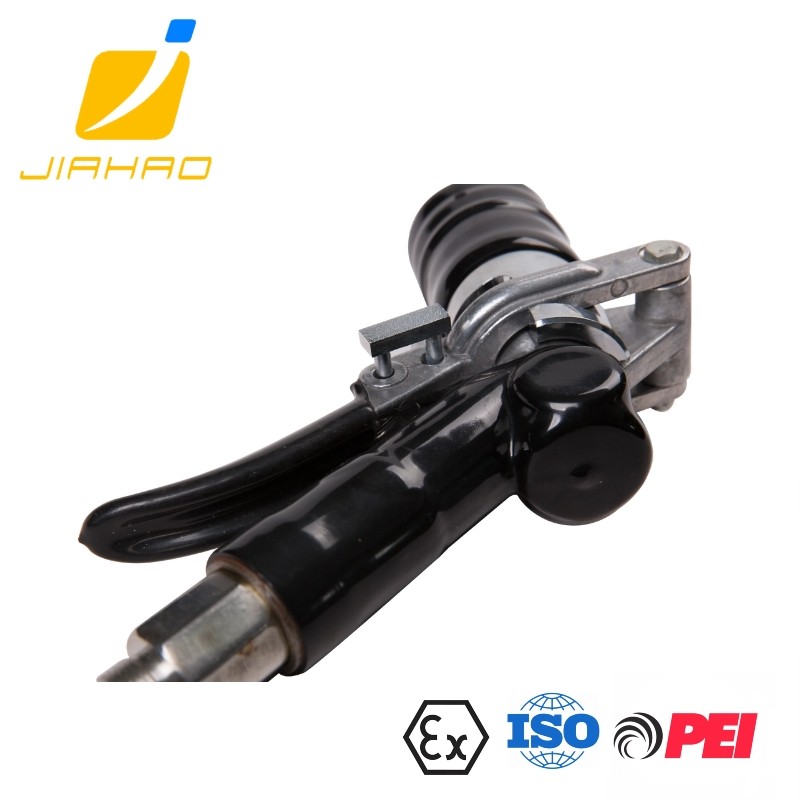

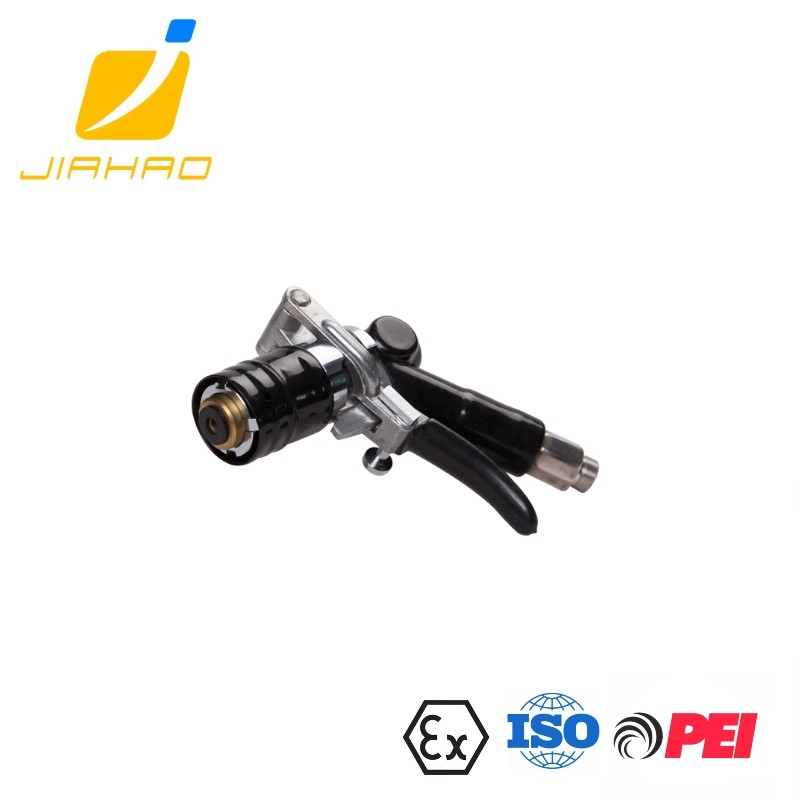

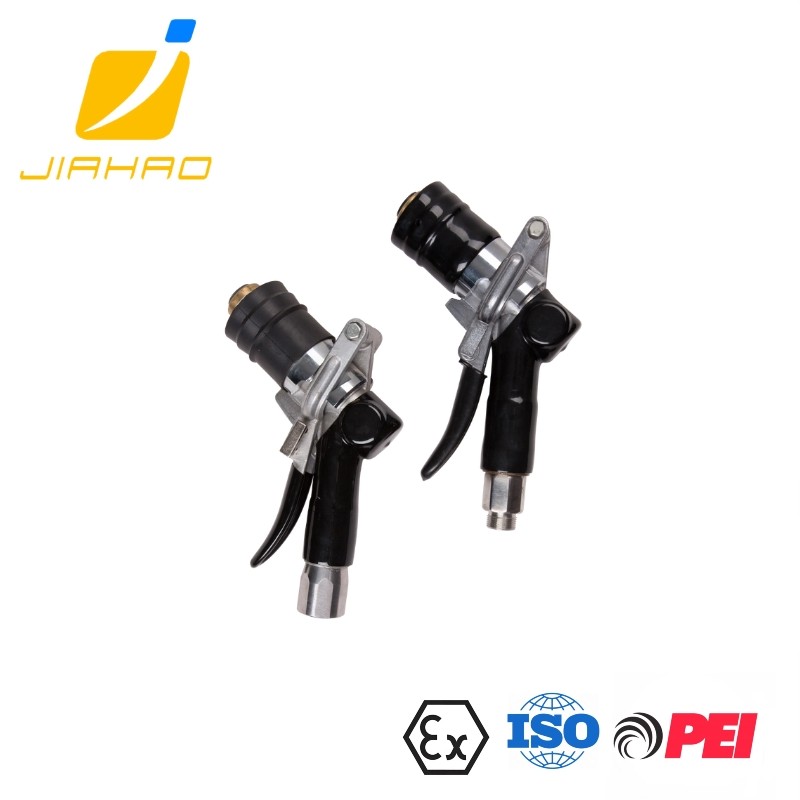

JQQKLPG2.2-01 Hammer-Lock 360° Single-Action LPG 4-CLAWS LPG Filling Nozzle

• User-friendly single-action operation for the entire fueling process:
  • Initiated by simply engaging the nozzle to the receptacle with a single squeeze of the hand.
• Hammer-Lock technology:
  • Ensures maximum durability.
  • Specifically designed for frequent coupling and uncoupling.
• Economic design:
  • Insulated handle protects the operator from temperature effects caused by high-flowing LP gas.Minimal force required to engage the nozzle.
• Durable construction:
  • Made of heavy-duty brass, aluminum, and stainless steel.
  • Provides excellent corrosion resistance in harsh fueling environments.
• Ease of use:
  • Incorporates a single-plane 360° inlet swivel.

Inlet size	BSP/NPT/BSPT 3/4''or 1''
Temperature	-40℃~85℃
Max. pressure	25 Bar
Dimension	360*320*320mm
Net/Gross weight	20kg/21kg
Package	10pcs/carton
